SPF4KT HVM;
SPF5KT HVM;
SPF6KT HVM;
SPF8KT HVM;
SPF10KT HVM;
SPF12KT HVM;
Single Phase.

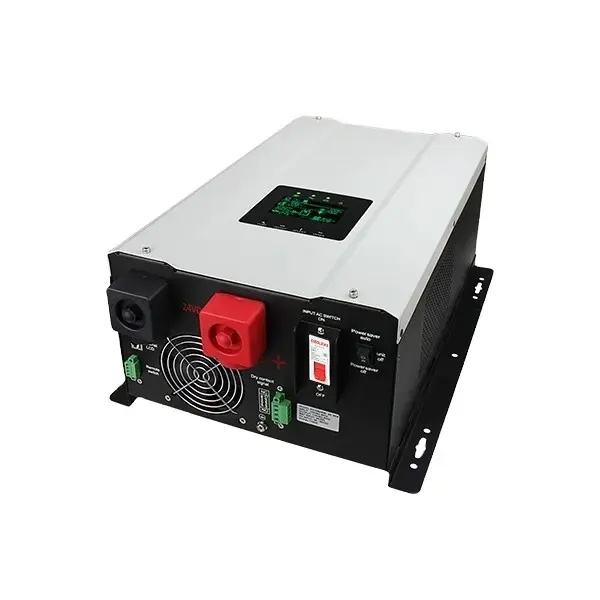

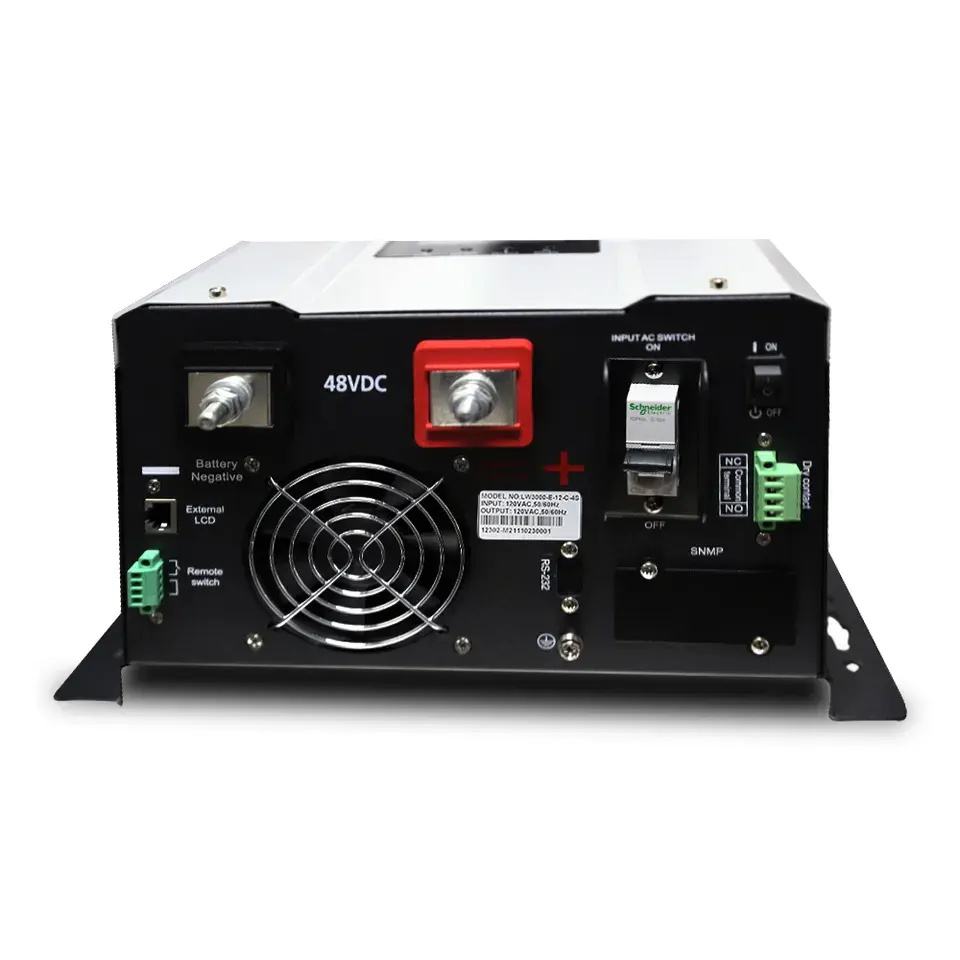

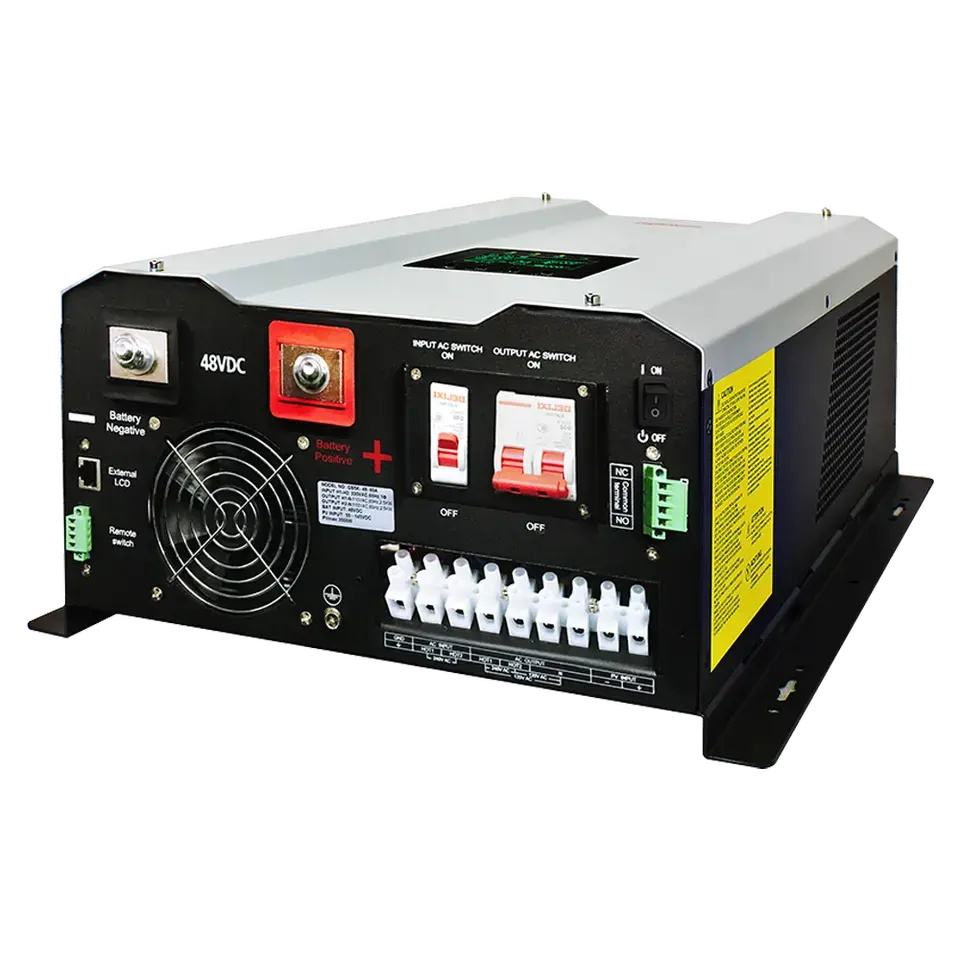

Growatt 50/60HZ 48VDC SPF 4-12KT HVM 5KW 10KW 12KW Single Phase Solar Inverter
|
Datasheet |
SPF4KT HVM |
SPF5KT HVM |
SPF6KT HVM |
SPF8KT HVM |
SPF10KT HVM |
SPF12KT HVM |
|
Battery Voltage |
48VDC |
|||||
|
Battery Type |
Lithium/Lead-acid |
|||||
|
INVERTER OUTPUT |
||||||
|
Rated Power |
4KW |
5KW |
6KW |
8KW |
10KW |
12KW |
|
Surge Rating |
12KW |
15KW |
18KW |
24KW |
30KW |
36KW |
|
Waveform |
Pure sine wave/ same as input(bypass mode) |
|||||
|
Nominal Output Voltage RMS |
220V/230V/240VAC(+/-10% RMS) |
|||||
|
Output Frequency |
50Hz/60Hz +/-0.3 Hz |
|||||
|
Inverter Efficiency(Peak) |
>85% |
>88% |
||||
|
Line Mode Efficiency |
>95% |
|||||
|
Power Factor |
1.0 |
|||||
|
Transfer Time |
10ms typical，20ms Max |
|||||
|
SOLAR CHARGER |
||||||
|
Maximum PV Charge Current |
80A |
120A |
||||
|
Maximum PV Array Power |
5000W |
7000W |
||||
|
Number of independent MPP trackers/ |
1/1 |
2/1 |
||||
|
MPPT Range @ Operating Voltage(VDC) |
60~145VDC |
60~145VDC |
||||
|
Maximum PV Array Open Circuit Voltage |
150VDC |
150VDC |
||||
|
Maximum Efficiency |
>98% |
>98% |
||||
|
AC INPUT |
||||||
|
Voltage |
230VAC |
|||||
|
Selectable Voltage Range |
154~272VAC(for appliances);184~272VAC(for UPS) |
|||||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|||||
|
Max. Charging Current |
40A |
50A |
60A |
70A |
80A |
100A |
|
MECHANICAL SPECIFICATIONS |
||||||
|
Protection Degree |
IP20 |
|||||
|
Dimensions (W/H/D) |
360/540/218mm |
360/540/218mm |
360/540/218mm |
380/650/225mm |
380/650/225mm |
380/650/225mm |
|
Weight |
38KG |
41KG |
45KG |
64KG |
66KG |
75KG |
|
OPERATING ENVIRONMENT |
||||||
|
Operation Temperature Range |
0°C to 45°C |
|||||
Energy Storage System Details
HYBRID SOLAR INVERTER
-Integrated MPPT charge controller.
-Optional WIFI/ GPRS remote monitoring.
-Built in pure copper low frequency transformer.
-Configurable grid or solar input priority.
Home ESS Battery System
CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.
-Flexible Module Design, Free Stacking According
To Your Needs.
-Easy Installation And Transportation.
-6000 Times Cyclelife, 10 Years Warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems
equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
