Customized large-scale capacity from 3KW to 3MW;
With professional wooden safe package;
With technical/engineering design and installation instruction service;
Tier-1 brand solar panel, inverter, battery cell materials.

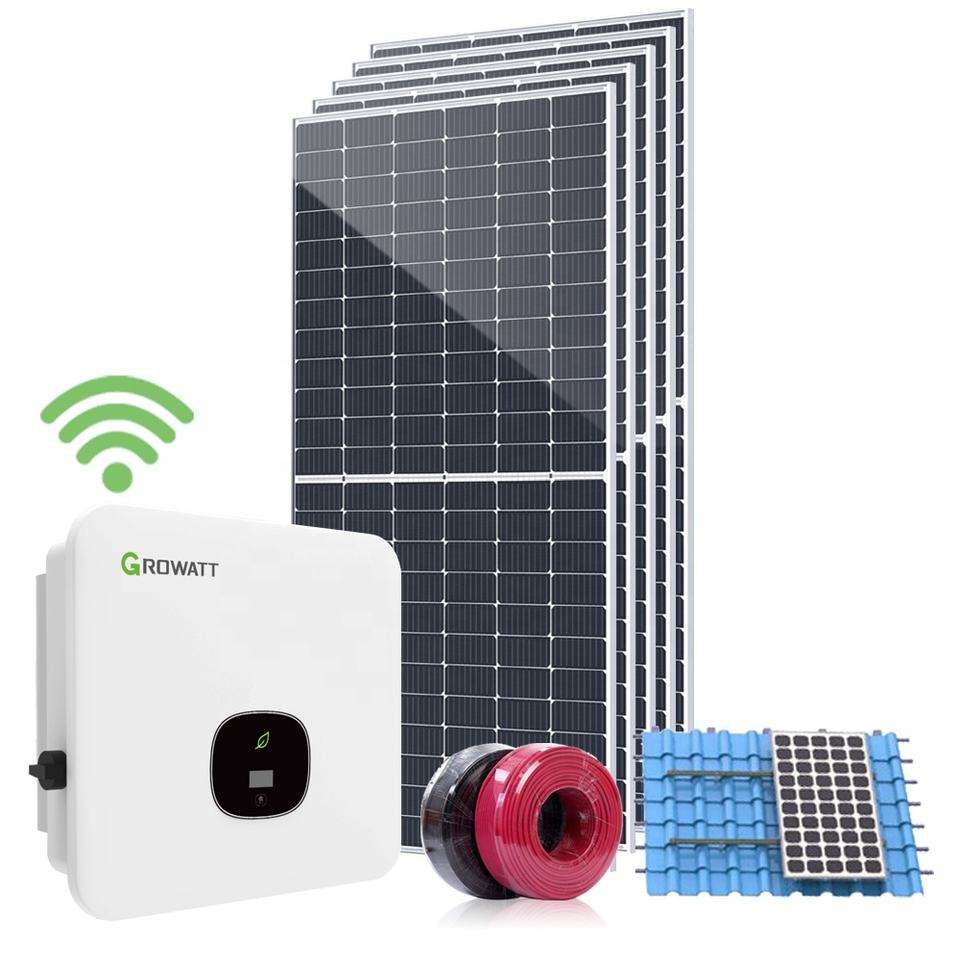

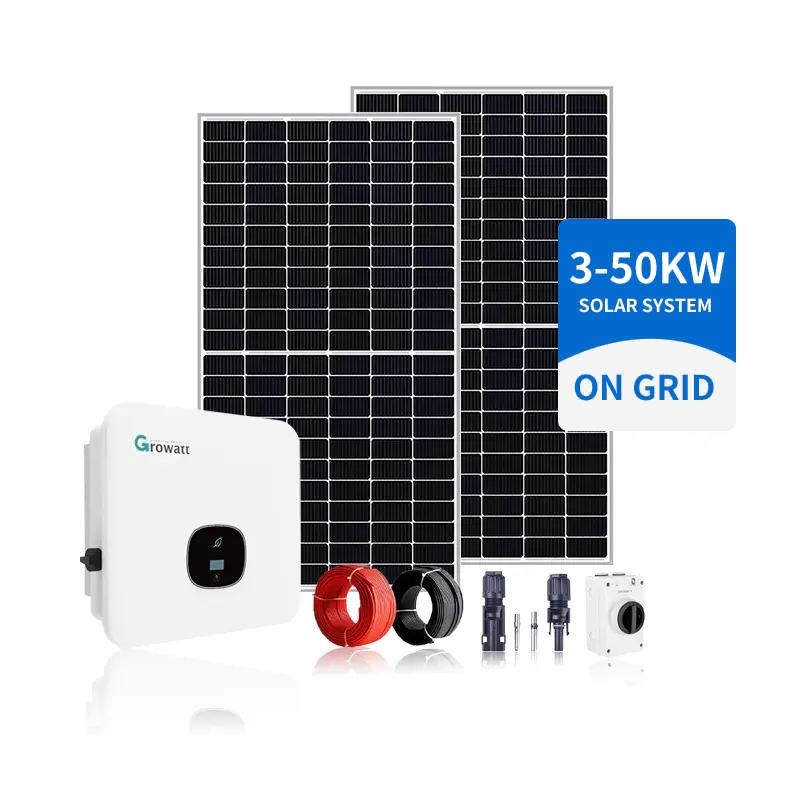

Commercial & Home ON-Grid Solar Energy System 3KW To 3MW
Complete On Grid Solar Energy System For Commercial & Home
|
Model |
80KW-ON |
100KW-ON |
110KW-ON |
125KW-ON |
|
580W Mono Solar Panel |
145 Piece |
172 Piece |
200 Piece |
228 Piece |
|
ON Grid Inverter |
80KW |
100KW |
110KW |
125KW |
|
DC Cable |
1200 Meters |
1400 Meters |
1600 Meters |
1800 Meters |
|
MC4 Connector |
120 Pairs |
140 Pairs |
160 Pairs |
180 Pairs |
|
Mounting System |
Ground or Roof ( Customized Optional) |
|||
|
Models |
200KW-ON |
300KW-ON |
500KW-ON |
600KW-ON |
|
System Power (KW) |
200KW |
300KW |
500KW |
600KW |
|
On Grid Inverter (pcs) (Growatt MAX 100KTL3-X LV) |
2pcs |
3pcs |
5pcs |
6pcs |
|
Monitoring System |
1Piece Growatt Shine Master |
|||
|
550 W Mono Solar Panel (Pcs) |
384 pcs |
576 pcs |
960 pcs |
1152 pcs |
|
DC Disconnect Switch (Pcs) |
32 pcs |
48 pcs |
80 pcs |
96 pcs |
|
AC Combiner Box |
2 input,1 output 1piece |
3 input,1 output 1piece |
5 input,1 output 1piece |
6 input,1 output 1piece |
|
PV Cable (M) |
3200 meters |
4800 meters |
8000 meters |
9600 meters |
|
MC4 (Pair) |
190pairs |
280 pairs |
480pairs |
570pairs |
|
Mounting System |
Customized Based On Your Installation Site |
|||
|
Models |
800KW-ON |
1000KW-ON |
2000KW-ON |
3000KW-ON |
|
System Power (KW) |
800KW |
1000KW |
2000KW |
3000KW |
|
On Grid Inverter (pcs) (Growatt MAX 100KTL3-X LV) |
8pcs |
10pcs |
20pcs |
30pcs |
|
Monitoring System |
1Piece Growatt ShineMaster |
|||
|
550 W Mono Solar Panel (Pcs) |
1536 pcs |
1920 pcs |
3840 pcs |
5760 pcs |
|
DC Disconnect Switch (Pcs) |
128 pcs |
160 pcs |
320 pcs |
480 pcs |
|
AC Combiner Box |
8 input,1 output 1piece |
10 input,1 output 1piece |
10 input,1 output 2pieces |
10 input,1 output 3pieces |
|
PV Cable (M) |
12800 meters |
16000 meters |
32000 meters |
48000 meters |
|
MC4 (Pair) |
760pairs |
960pairs |
1920pairs |
2880pairs |
|
Mounting System |
Customized Based On Your Installation Site |
|||
Warm Note: the solar system data is initial design for your reference, the final data is subject to your final Installation conditions and requirements, for more capacity and details pls inquiry us!

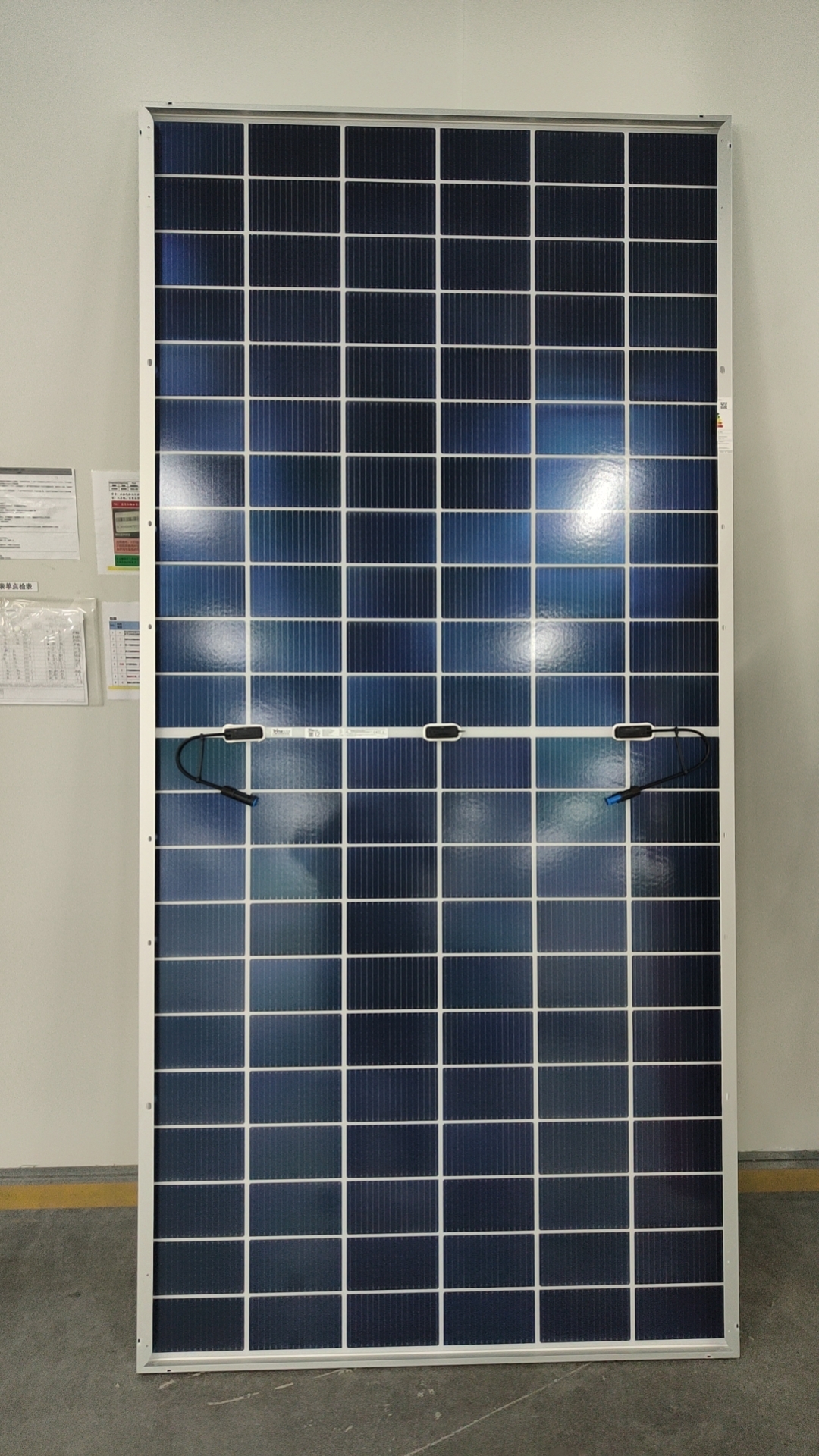

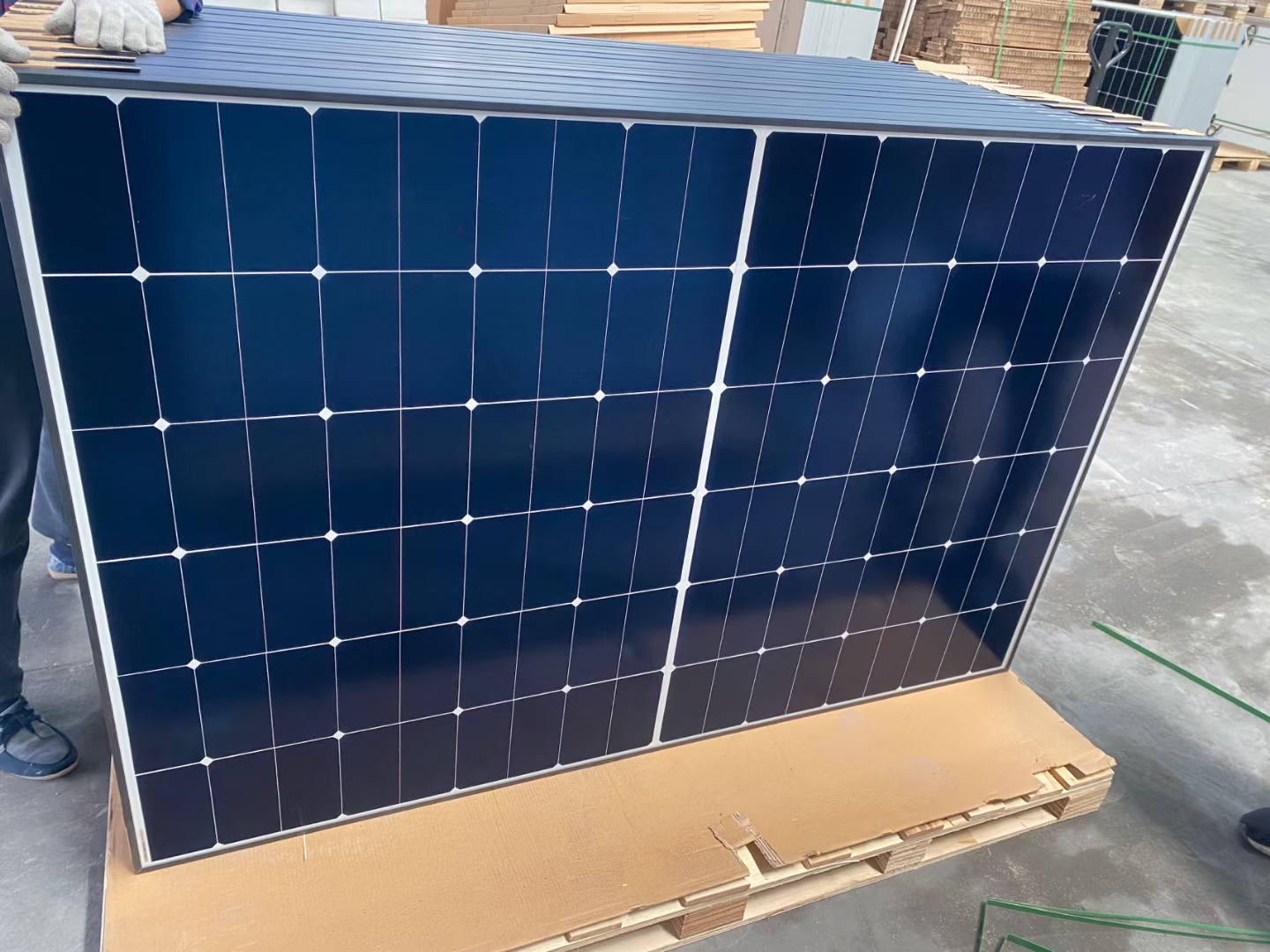

MONO Solar Panel
-Tier-1 brand N type mono half-cell;
-Monofacial, bifacial, all black etc. various kinds;
-From 400w+ to 700w+ wide range capacity;
-Anti-dust, anti-snow design, high efficiency, long warranty.
Hybrid Solar Inverter
-Tier-1 brand commercial industrial inverer;
-Support EPs function and black start.
-100% unbalanced load when backup.
-100% continuous AC over loading capacity.
-Support remote control of DG.
-Multiple MPPTs input.
-High capacity, grid-support functions.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems;
-equipped with fire protection system;
-Built-in fan, balanced temperature;
-The electrodes and busbars are designed with plastic slots to prevent leakage;
-Multiple protection, long Life, high safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system;
-Advanced battery management system;
-Low installation, delivery, operation and maintenance costs;
-Protection class IP54, plug and play.
Solar System Accessories
-IP67 degree of protection;
-Customize PV combiner box;
-Excellent resistance to U.V,oil, greases, oxygen and ozone;
-Excellent flexibility and stripping;
-High voltage and current carring capacity;
-IP 65 degree lightning protection.
Solar Mounting System
-Customized ground solar mounting system;
-Industrial commercial park roof mounting system;
-Car parking solar mounting system;
-Vertical wall solar mounting system;
-All aluminum structure solar mounting system;
-Ballasted mount, do not harm the roof structure;
-Most parts are preinstalled, save 50% labour force.
PV Tools
Disassembly tool/ MC3 PV crimper/ Wire cable cutter & stripper/ PV connectors assembly; Solar crimping tool is high-precision ratchet mechanism for complete crimps; 1.2 metric tons pressure at crimping face, with minimal hand effort; Interchangeable high-precision crimping die set; Top German quality.

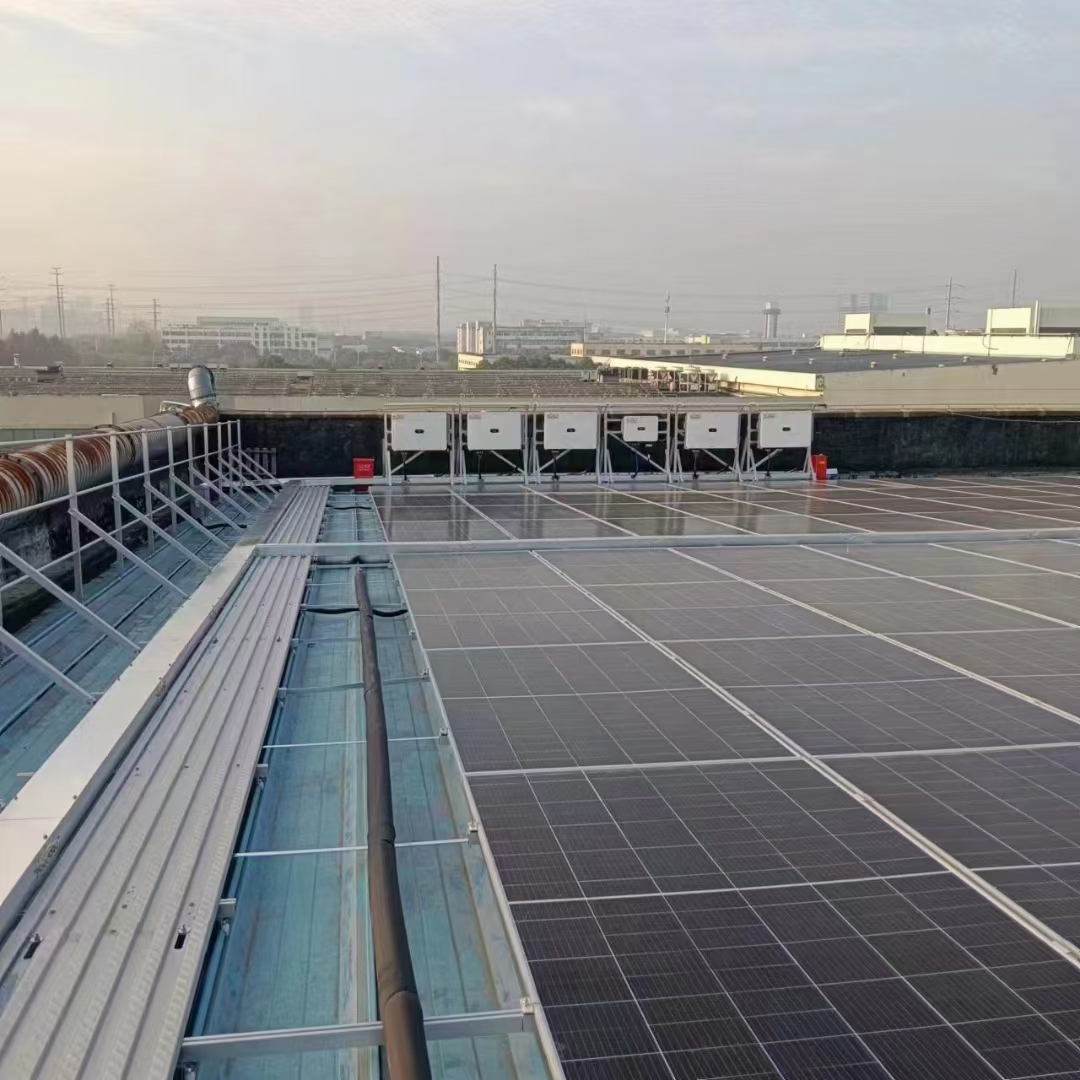

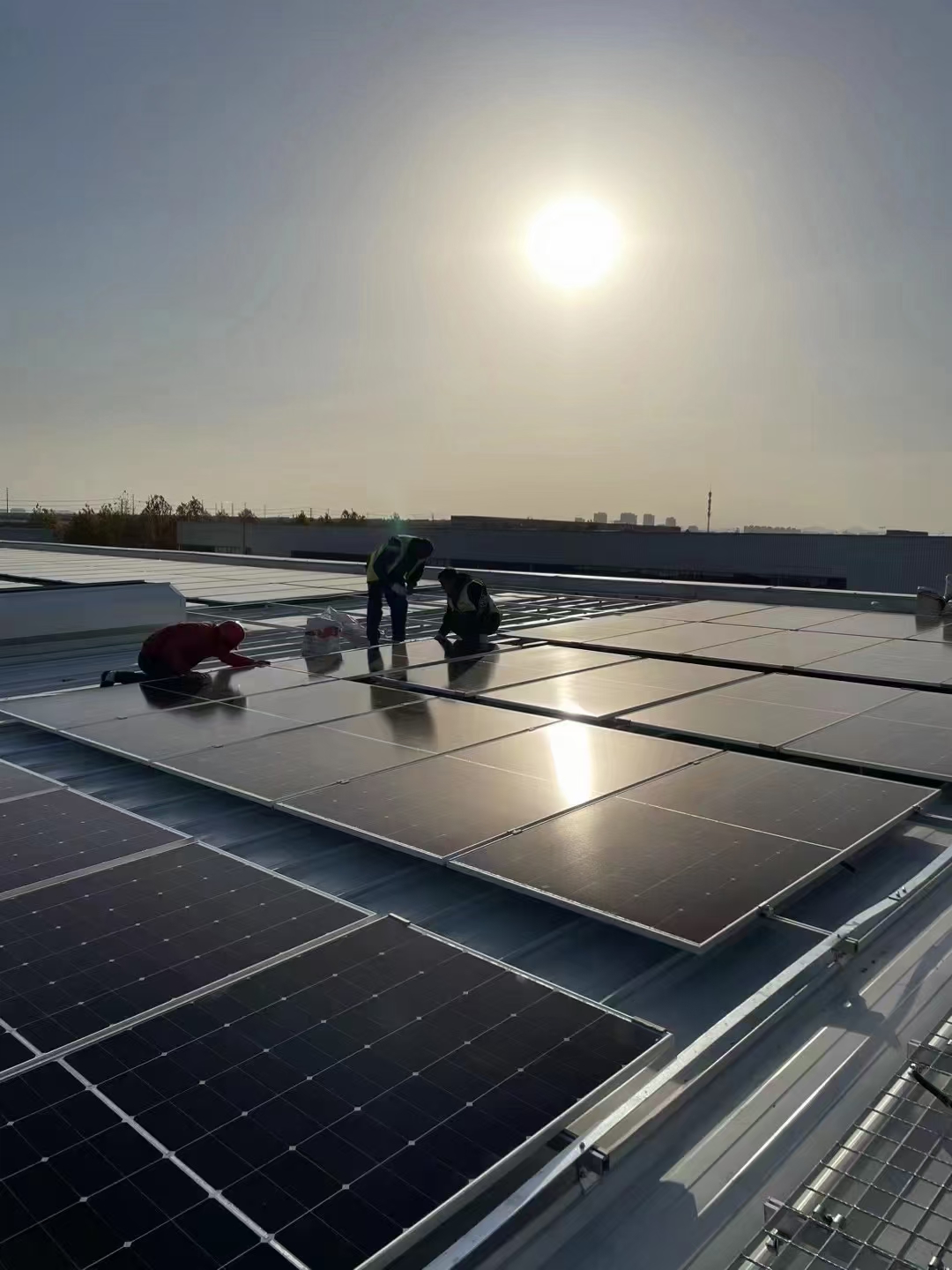

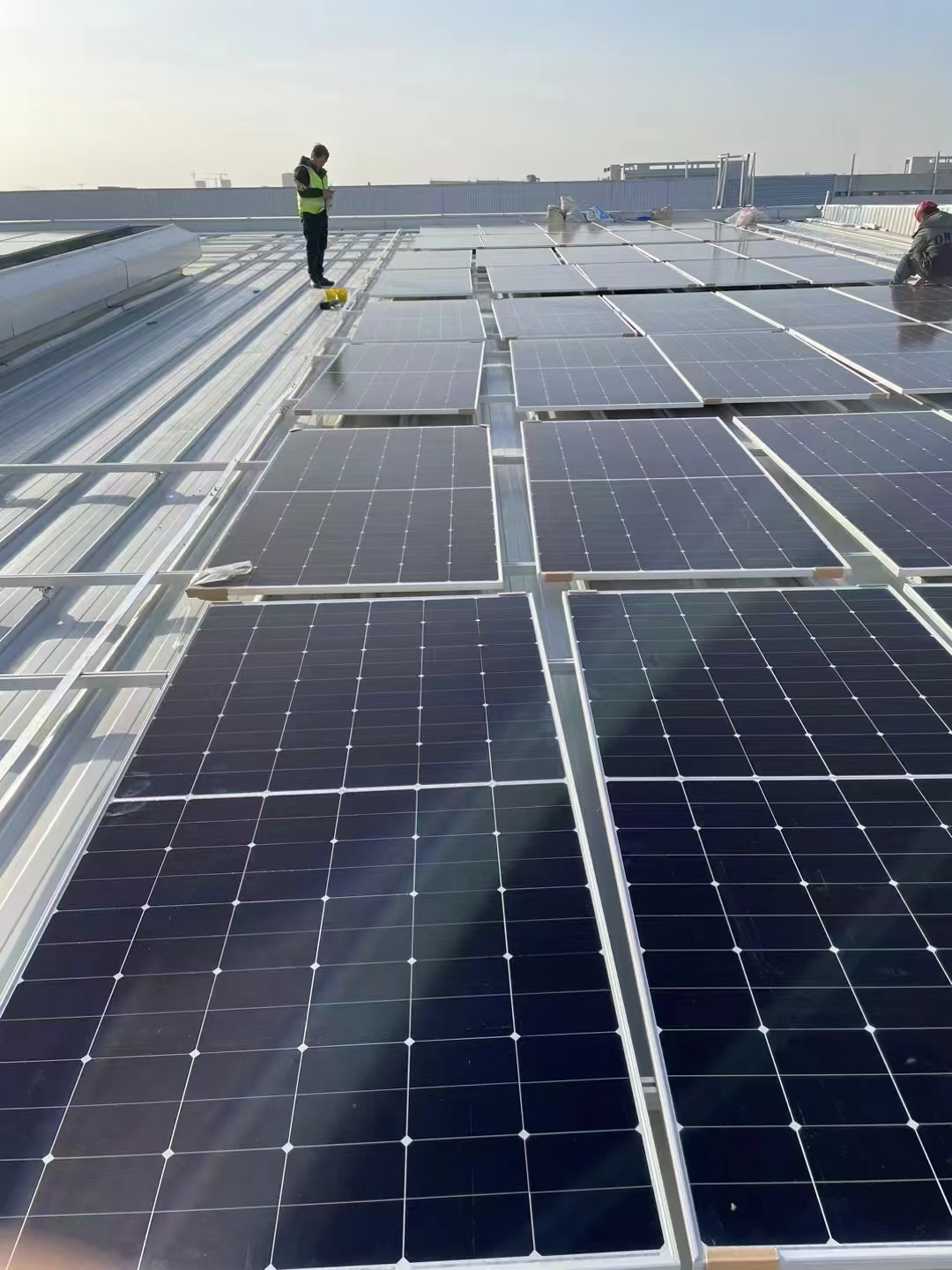

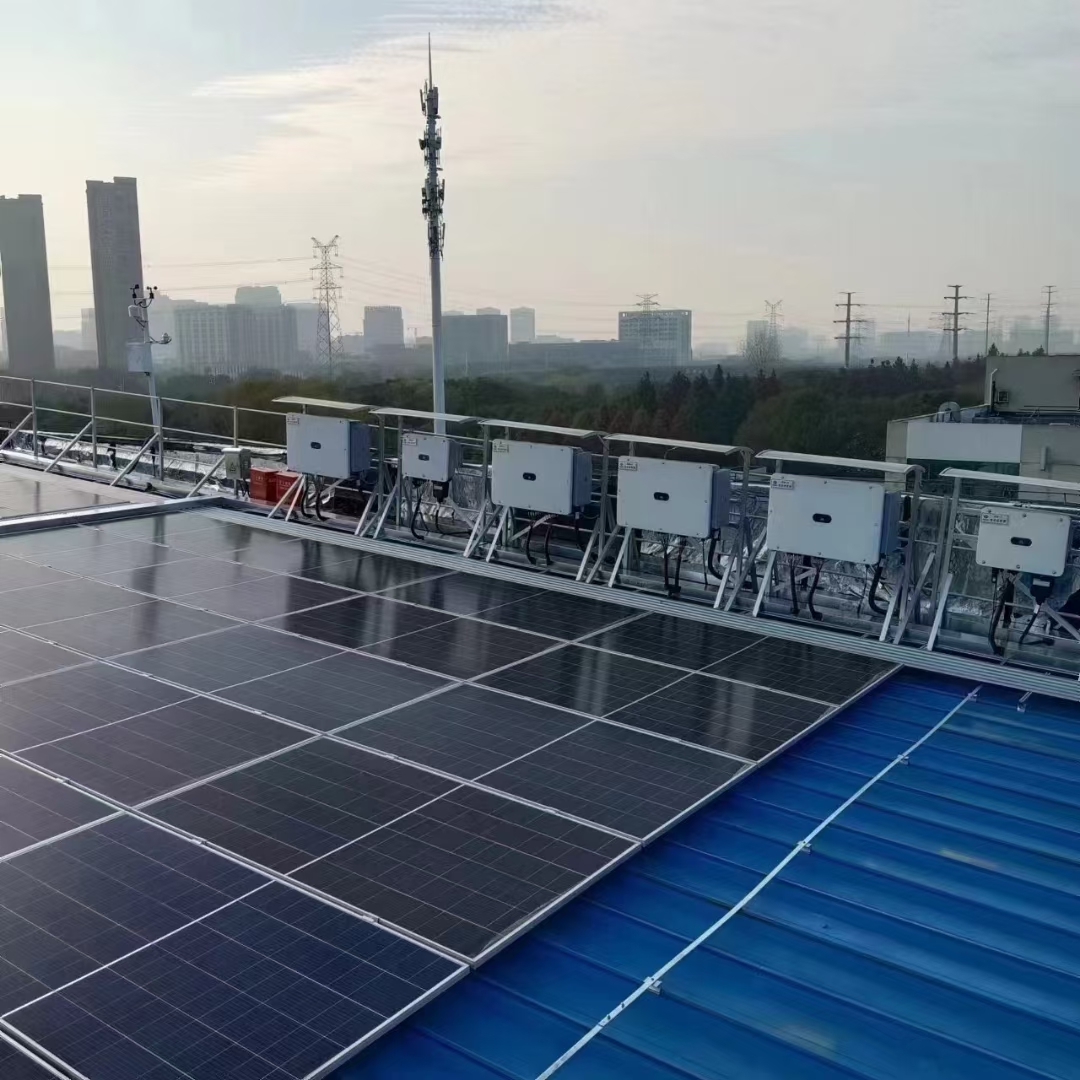

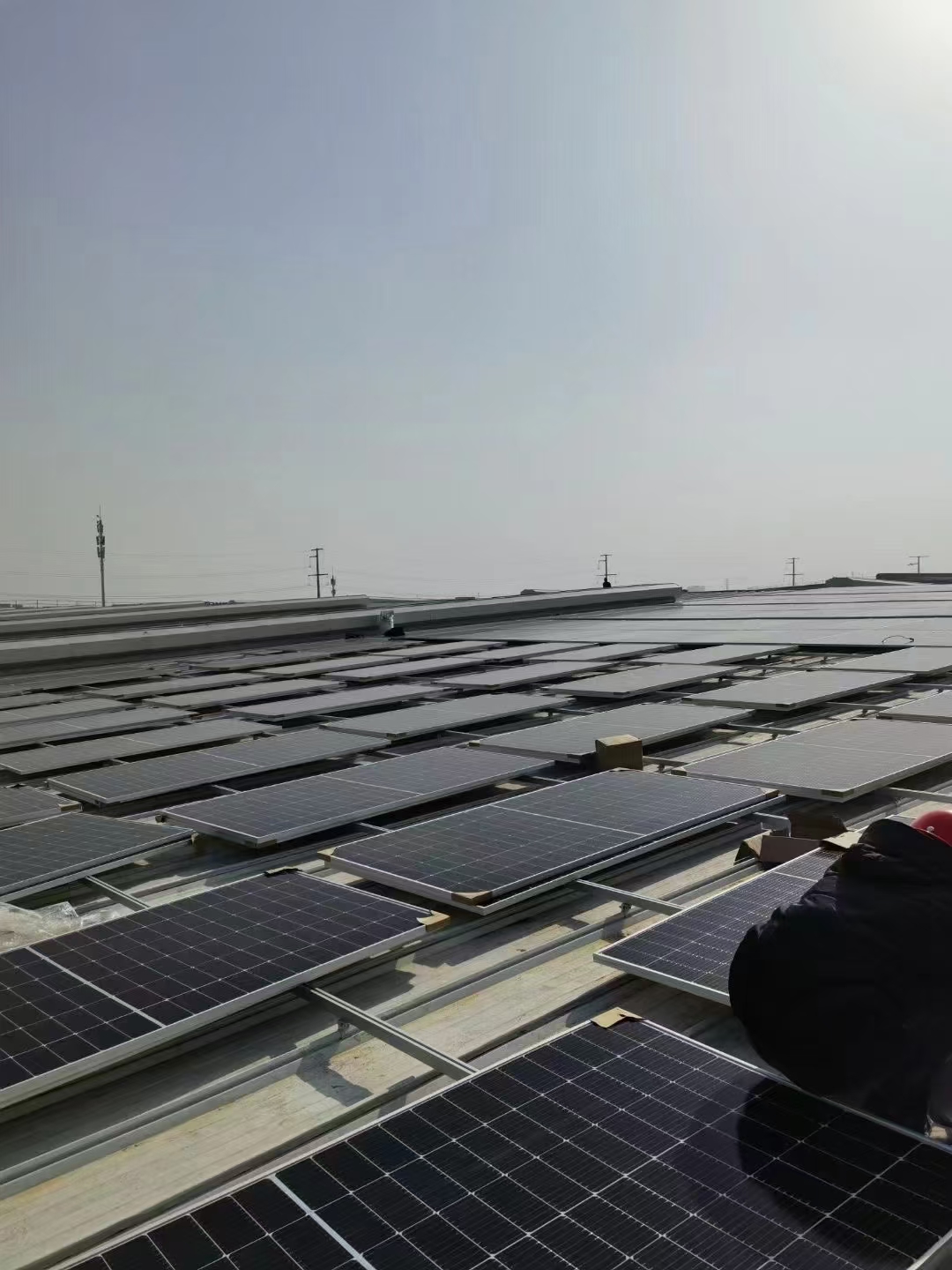

Project Cases
