Customized large-scale capacity from 5KW to 50KW;

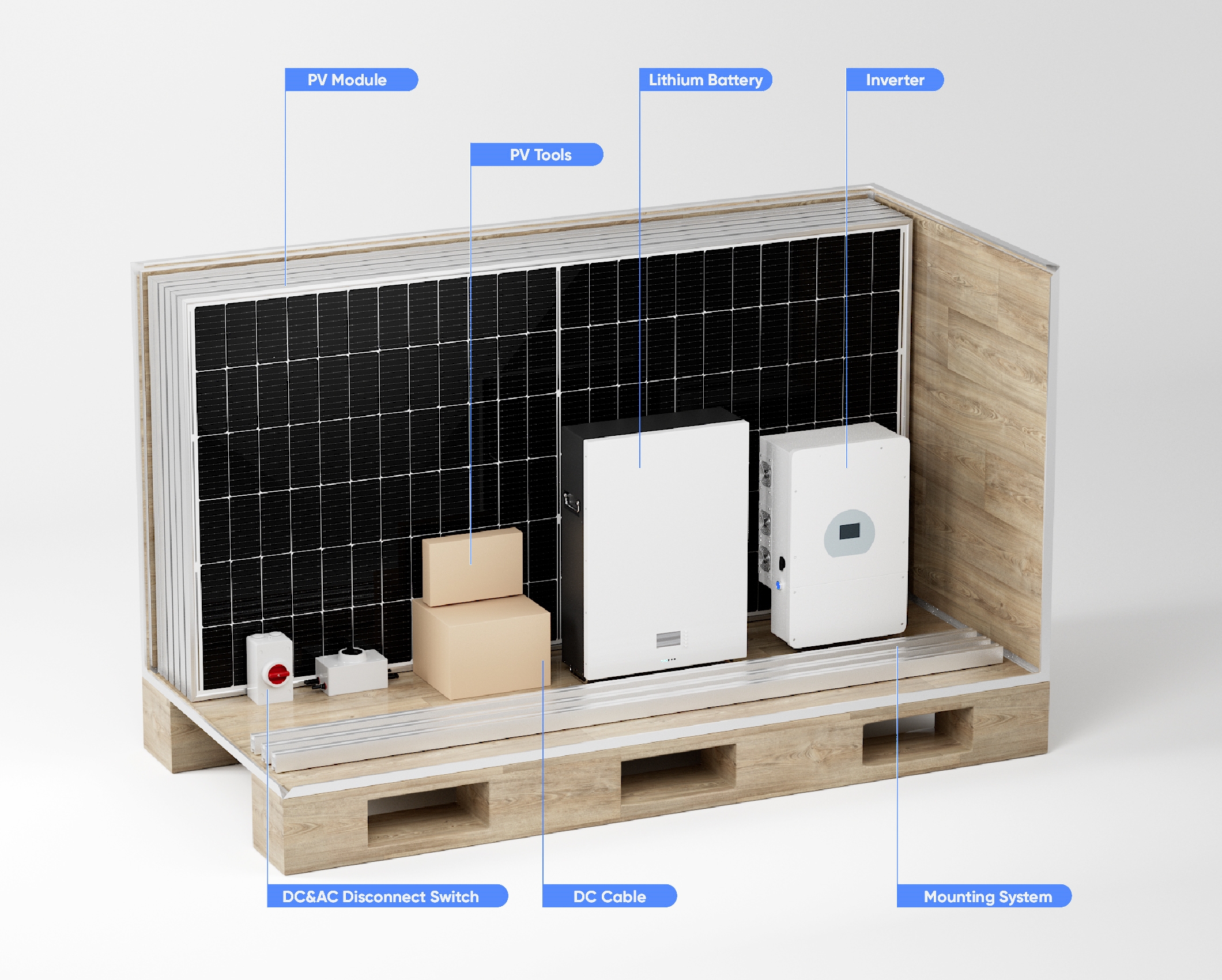

With professional wooden safe package;
With technical/engineering design and installation instruction service;
Tier-1 brand solar panel, inverter, battery cell materials.

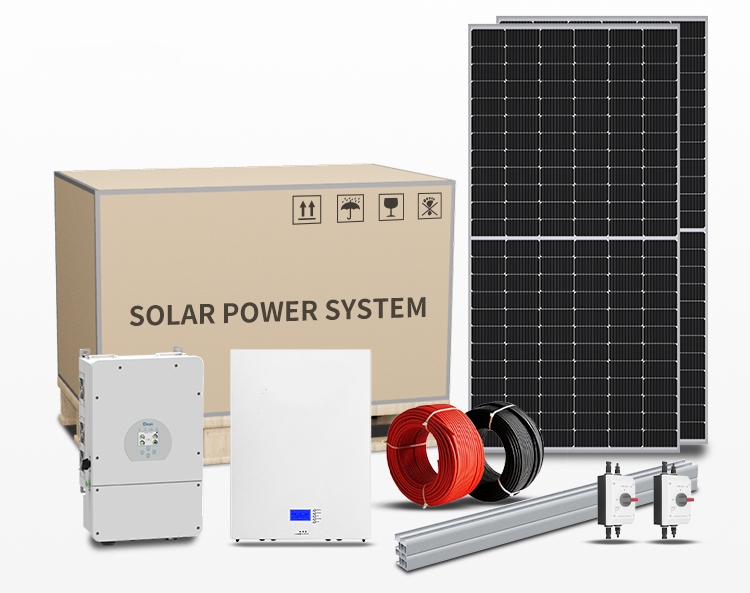

Home Hybrid Solar Energy System 5KW To 30KW
Home Hybrid Solar Energy System
|
15KW Hybrid Solar Power System Configuration |
|||
|
Item |
Model |
Description |
Quantity |
|
1 |
Solar Panel |
Half cut mono solar panel 560w |
26 pcs |
|
2 |
Combiner Box |
Optional |
1 pc |
|
3 |
Lithium Battery or Lead Acid Battery |
21.7kWh Stacked Battery |
1 pcs |
|
4 |
Hybrid Inverter |
15kva |
1pc |
|
5 |
Mounting Support |
Roof/Ground |
1 set |
|
6 |
Cable |
4mm² PV cable |
200m |
|
7 |
Connector |
Solar Connector |
8 pairs |
|
8 |
Tools Bag |
Solar Installation tools |
1 set |
|
20KW Hybrid Solar Power System Configuration |
|||
|
Item |
Model |
Description |
Quantity |
|
1 |
Solar Panel |
Half cut mono solar panel 560w |
42 pcs |
|
2 |
Combiner Box |
Optional |
1 pc |
|
3 |
Lithium Battery or Lead Acid Battery |
21.7kWh Stacked Battery |
1pc |
|
4 |
Hybrid Inverter |
20kva |
1pc |
|
5 |
Mounting Support |
Roof/Ground |
1 set |
|
6 |
Cable |
4mm² PV cable |
200m |
|
7 |
Connector |
Solar Connector |
10 pairs |
|
8 |
Tools Bag |
Solar Installation tools |
1 set |
|
30KW Hybrid Solar Power System Configuration |
|||
|
Item |
Model |
Description |
Quantity |
|
1 |
Solar Panel |
Half cut mono solar panel 560w |
58 pcs |
|
2 |
Combiner Box |
Optional |
1 pc |
|
3 |
Lithium Battery or Lead Acid Battery |
32.56kWh Stacked Battery |
1pc |
|
4 |
Hybrid Inverter |
30kva |
1pc |
|
5 |
Mounting Support |
Roof/Ground |
1 set |
|
6 |
Cable |
4mm² PV cable |
300m |
|
7 |
Connector |
Solar Connector |
12 pairs |
|
8 |
Tools Bag |
Solar Installation tools |
1 set |
Warm Note: the solar system data is initial design for your reference, the final data is subject to your final Installation conditions and requirements, for more capacity and details pls inquiry us!

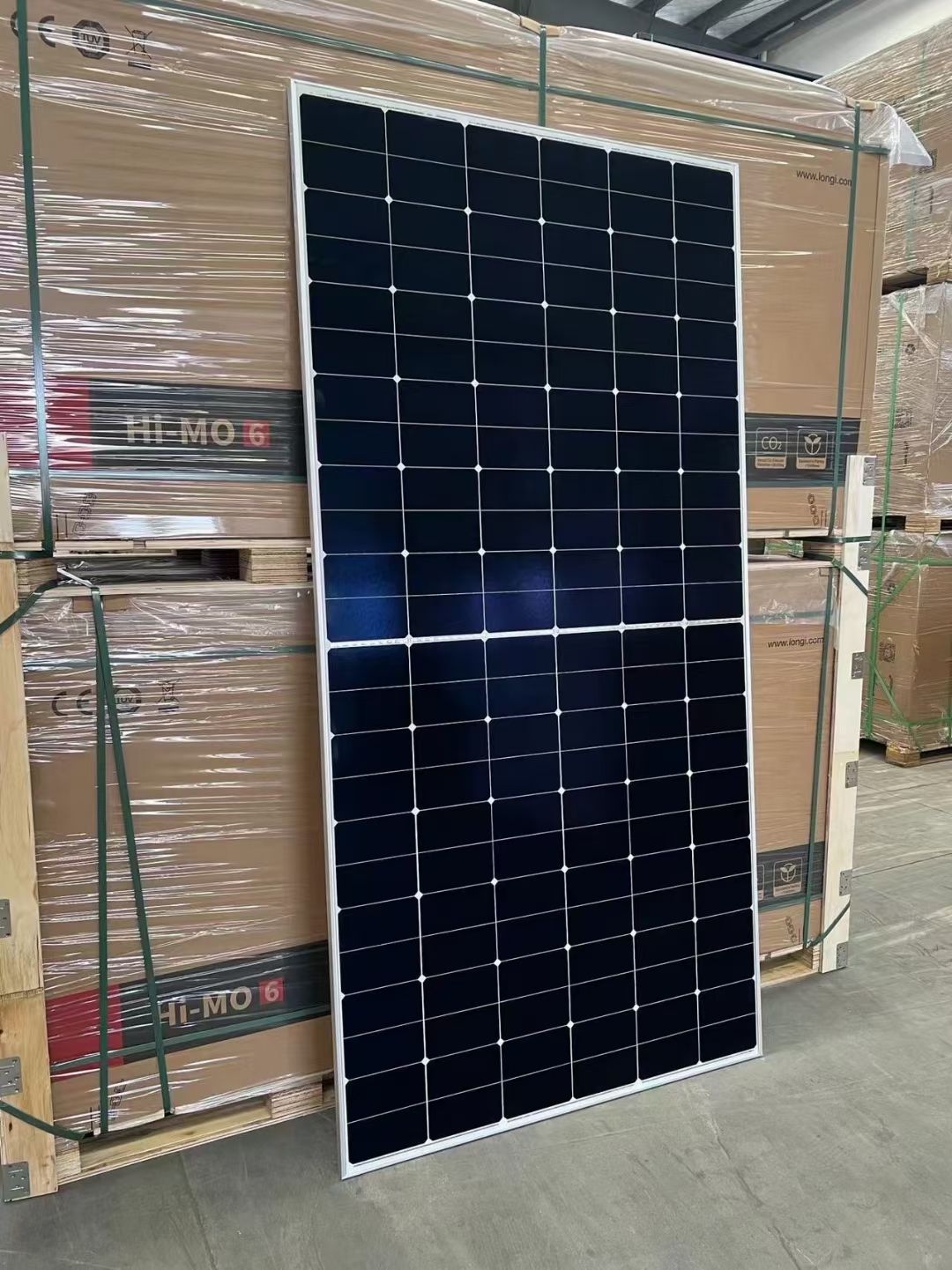

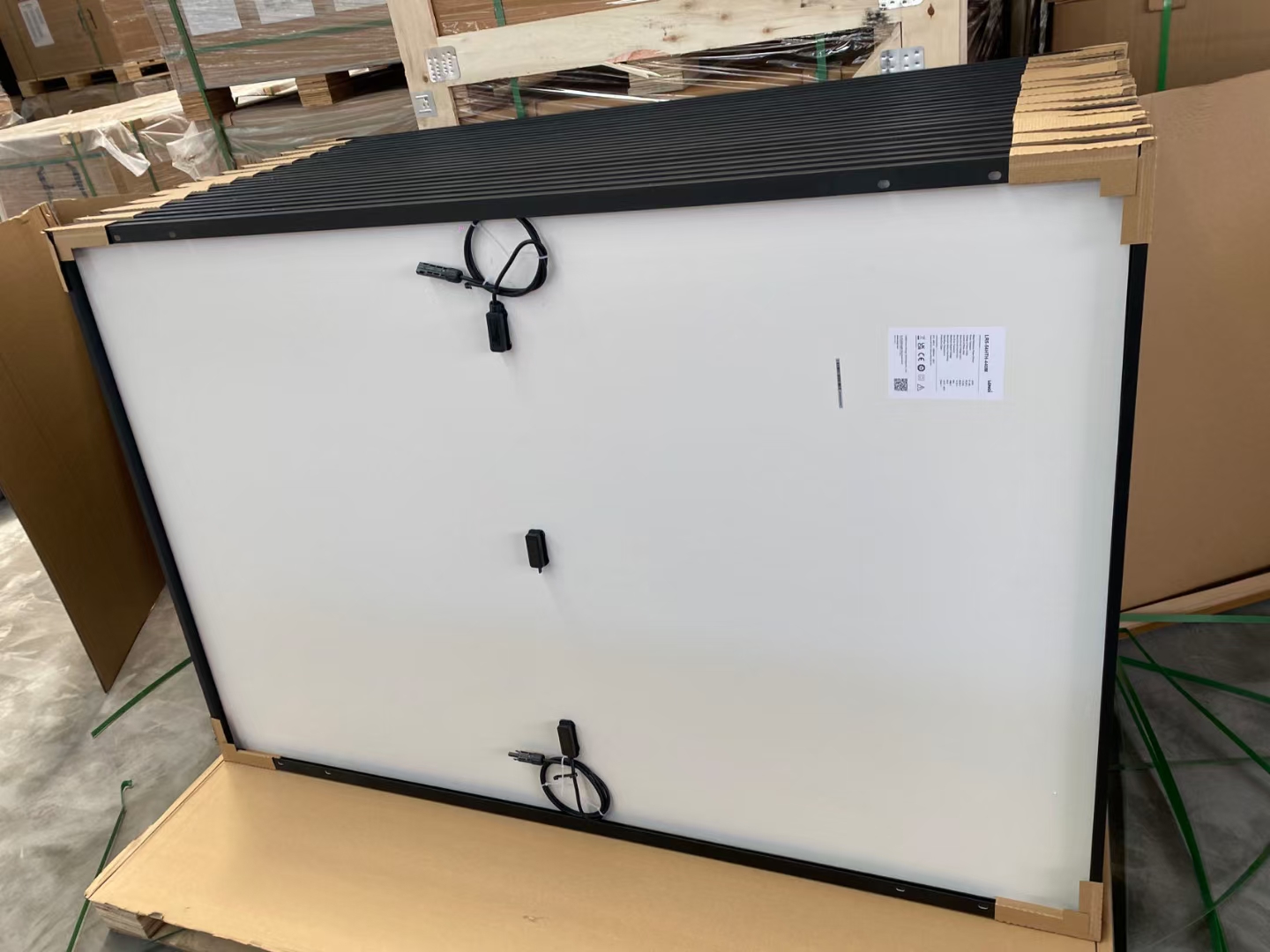

MONO Solar Panel
-Tier-1 brand N type mono half-cell;
-Monofacial, bifacial, all black etc. various kinds;
-From 400w+ to 700w+ wide range capacity;
-Anti-dust, anti-snow design, high efficiency, long warranty.
Hybrid Solar Inverter
-Tier-1 brand residential inverer;
-Support EPs function and black start;
-100% unbalanced load when backup;
-100% continuous AC over loading capacity;
-Support remote control of DG;
-High capacity, grid-support functions;
-Max 16pcs parallel for on-grid and off-grid operation;
Support multiple batteries parallel; DC couple and AC
couple to retrofit existingsolar system.
Home ESS Battery System
-CE/ULROHS/IEC/CB/UN38.3/MSDS etc full certified.
-Flexible module design, free stacking based on usage scenario.
-Easy installation and transportation.
-6000+ times cycle life, 10 years warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Solar System Accessories
-IP67 degree of protection;
-Customize PV combiner box;
-Excellent resistance to U.V,oil, greases, oxygen and ozone;
-Excellent flexibility and stripping;
-High voltage and current carring capacity;
-IP 65 degree lightning protection.
Solar Mounting System
-Customized ground solar mounting system;
-Customized home rooftop mounting system;
-Car parking solar mounting system;
-Vertical wall solar mounting system;
-All aluminum structure solar mounting system;
-Ballasted mount, do not harm the roof structure;
-Most parts are preinstalled, save 50% labour force.
PV Tools
Disassembly tool/ MC3 PV crimper/ Wire cable cutter & stripper/ PV connectors assembly; Solar crimping tool is high-precision ratchet mechanism for complete crimps; 1.2 metric tons pressure at crimping face, with minimal hand effort; Interchangeable high-precision crimping die set; Top German quality.
