Product Showcase

On/Off Grid Hybrid Solar Inverter;
SPF 3000TL LVM-24P;
SPF 3000TL LVM-48P;
SPF 3500 ES;
SPF 5000 ES;
SPF 3000TL LVM-ES;
Single Phase.
Inquiry

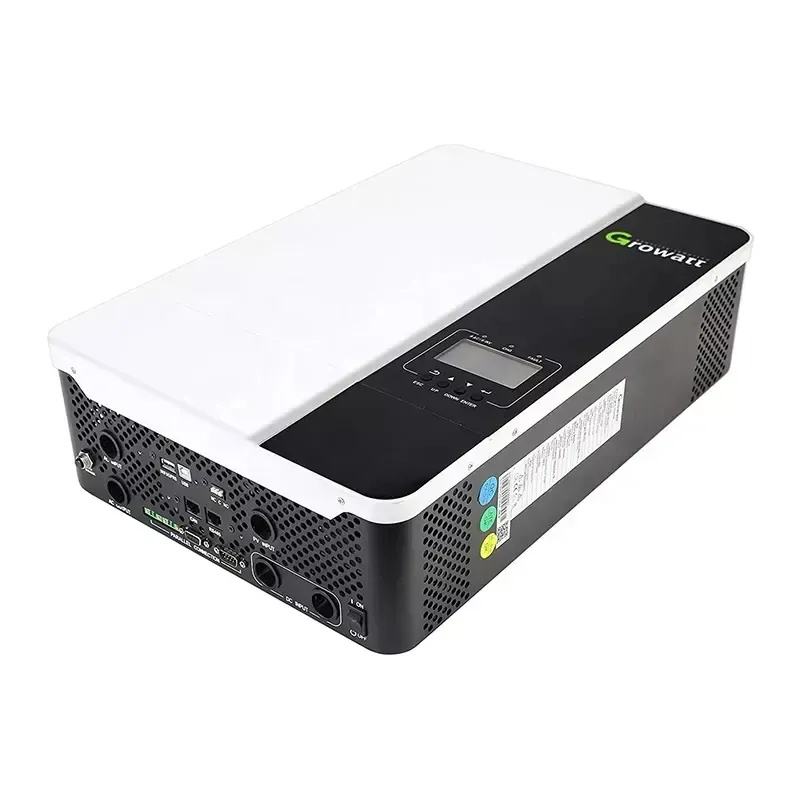

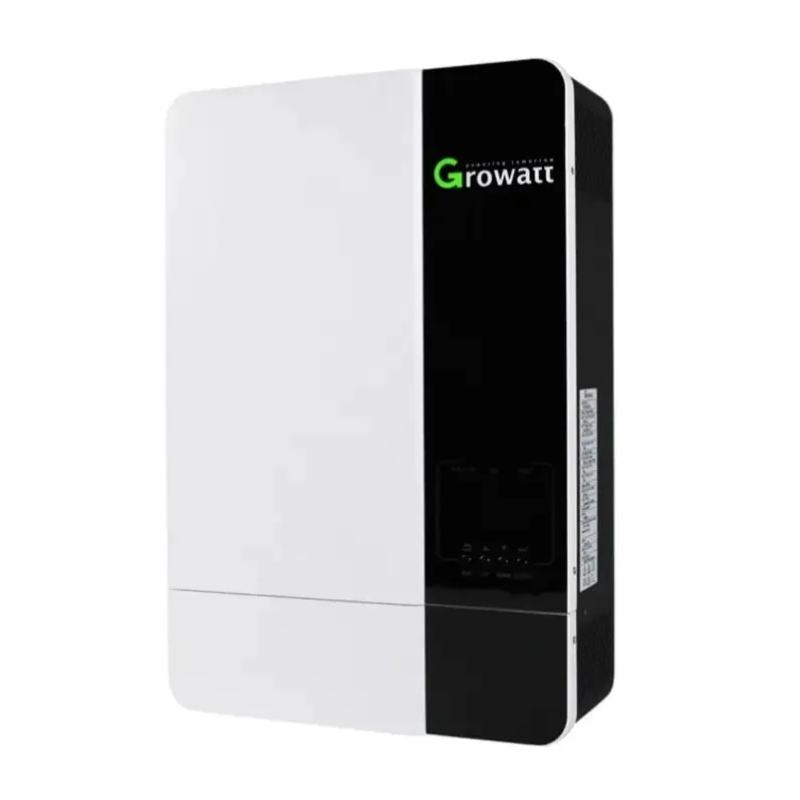

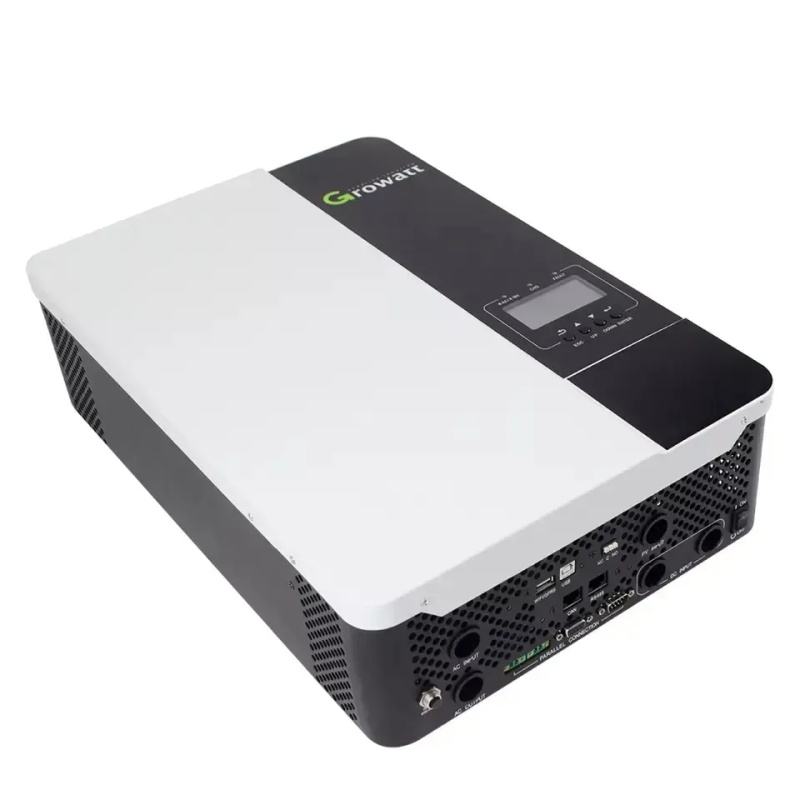

Growatt Solar Inverter SPF 3000-5000 ES 3/3.5/5KW

H6efcb73b881f4a87bea1061be28f5559G
Hdb7ba9f2daf64f67994aea62a1e560561
H07a0ae46fa05430e981c95f550436787f
H1adcf2e2d7304a14bfc9638b83e984a6S
H194bfce23a9e41f1bd056983a1dd0ef7V



Datasheet

SPF 3000TL LVM-24P

SPF 3000TL LVM-48P

SPF 3500 ES

SPF 5000 ES

SPF 3000TL LVM-ES

Battery voltage

24VDC

48VDC

48VDC

48VDC

48VDC

Battery type

Lithium/Lead-acid

INVERTER OUTPUT

Rated power

3000VA/3000W

3000VA/3000W

3500VA/3500W

5000VA/5000W

3000VA/3000W

Paralell capability

YES

YES

YES,6Units MAX

AC voltage

100/110/120VAC

230VAC

100/110/120VAC

Surge power

6000VA

6000VA

7000VA

10000VA

6000VA

Efficiency(peak)

93%

93%

90%

Waveform

pure sine wave

Transfer time

10ms typical,20ms max

SOLAR CHARGER

Maximum pv array power

2000W

4500W

4500W

6000W

4000W

MPPT range

30VDC-115VDC

60VDC-115VDC

120VDC-430VDC

120VDC-250VDC

Maximum pv array open circuit voltage

145VDC

450VDC

250VDC

Numbers of independent mppt trackers/strings per mppt tracker



1/1

Maximum solar charge current

80A

80A

100A

80A

Maximum efficiency

98%

AC CHARGER

Charge current

60A

40A

60A

80A

40A

AC Input voltage

120VAC

230VAC

120VAC

Frequecny

50/60HZ

PHYSICAL

Protection degree

IP20

Dimension(W/H/D)

130/350/455mm

330/485/135mm

320/470/135mm

Net weight(kgs)

11.5

11.5

12

12

OPERATING ENVIRONMENT

Humidity

5% to 95%

Storage temperature

-15-60 C

Operating temperature

0-55 C

















Energy Storage System Details









 HYBRID SOLAR INVERTER



-Integrated MPPT charge controller.

-Optional WIFI/ GPRS remote monitoring.

-Built in pure copper low frequency transformer.

-Configurable grid or solar input priority.

















Home ESS Battery System



CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.

-Flexible Module Design, Free Stacking According

To Your Needs.

-Easy Installation And Transportation.

-6000 Times Cyclelife, 10 Years Warranty.

-Over temperature, over current, over voltage, over discharge, over charge protection.

















Micro Grid ESS Outdoor Cabinet



-Support on-grid and off-grid systems

equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.



















Commercial & Industrial ESS Container



-Fault classification processing mechanism.

-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
