Datasheet

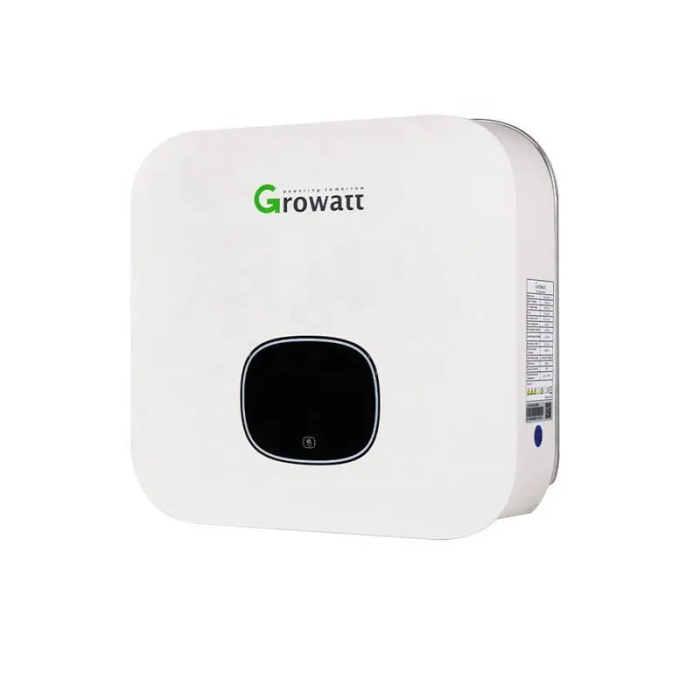

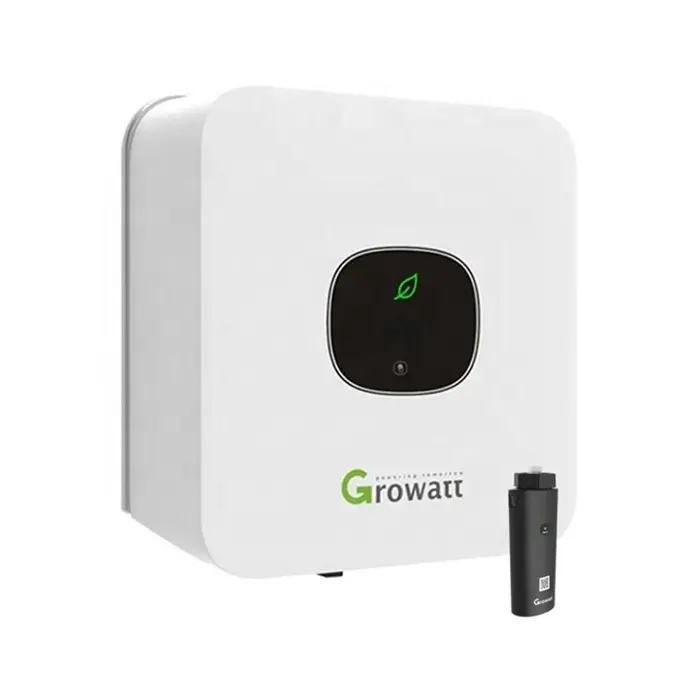

MIN 2500TL-XH

MIN 3000TL-XH

MIN 3600TL-XH

MIN 4200TL-XH

MIN 4600TL-XH

MIN 5000TL-XH

MIN 6000TL-XH

Input data (DC)

Max. recommended PV power(for module STC)

5000W

6000W

7200W

8400W

9200W

10000W

10000W

Max. DC voltage

500V

500V

500V

550V

550V

550V

550V

Start voltage

100V

Nominal voltage

360V

MPP voltage range

70V-500V

70V-500V

70V-550V

70V-550V

70V-550V

70V-550V

70V-550V

No. of MPP trackers

2

No. of PV strings per MPP tracker

1

Max. input current per MPP tracker

13.5A

Max. short-circuit current per MPP tracker

16.9A

Input data (DC battery)

Compatible battery

ARK XH Battery System (5.12kWh~17.9kWh)

Operating voltage range

360-500V

360-550V

Max.operating current

17A

Max.charge power

6000W

Max.discharge power

2500W

3000W

3600W

4200W

4600W

5000W

6000W

Output data (AC)

AC nominal power

2500W

3000W

3600W

4200W

4600W

5000W

6000W

Max. AC apparent power

2500VA

3000VA

3600VA

4200VA

4600VA

5000VA

6000VA

Nominal AC voltage(range*)

230V (180-280V)

AC grid frequency(range*)

50/60 Hz (45-55Hz/55-65 Hz)

Max. output current

11.3A

13.6A

16A

19A

20.9A

22.7A

27.2A

Adjustable power factor

0.8leading…0.8lagging

THDi

<3%

AC grid connection type

Single phase

Output data (Backup*)

Max. apparent power

2500VA

3000VA

3600VA

4200VA

4600VA

5000VA

6000VA

Nominal AC voltage

230V

AC grid frequency

50/60Hz

Efficiency

Max.efficiency

98.2%

98.2%

98.2%

98.4%

98.4%

98.4%

98.4%

European efficiency

97.1%

97.1%

97.2%

97.5%

97.5%

97.5%

97.5%

MPPT efficiency

99.9%

Protection devices

DC reverse polarity protection

Yes

DC switch

Yes

AC/DC surge protection

Type III / Type III

Insulation resistance monitoring

Yes

AC short-circuit protection

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

Anti-islanding protection

Yes

Residual-current monitoring unit

Yes

AFCI protection

Optional

General data

Dimensions (W / H / D)

375/350/160mm

Weight

10.8kg

Operating temperature range

–25°C ... +60°C

Noise emission (typical)

≤35 dB(A)

Nighttime power consumption

< 1W

Topology

Transformerless

Cooling

Natural convection

Protection degree

IP65

Relative humidity

0-100%

Altitude

4000m

DC connection

H4/MC4(Optional)

AC connection

Connector

Display

OLED+LED/WIFI+APP

Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN

Yes/Yes/Optional/Optional/Optional /Optional

Warranty: 5 years / 10 years

Yes /Optional

CE, IEC62109, AS/NZS 4777.2, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1,EN 50549, IEC 62116, IEC 61727, G98/G99

* The AC voltage and frequency range may vary depending on specific country grid standard.
All specifications are subject to change without notice.

*Backup power function need a Backup Box accessory
