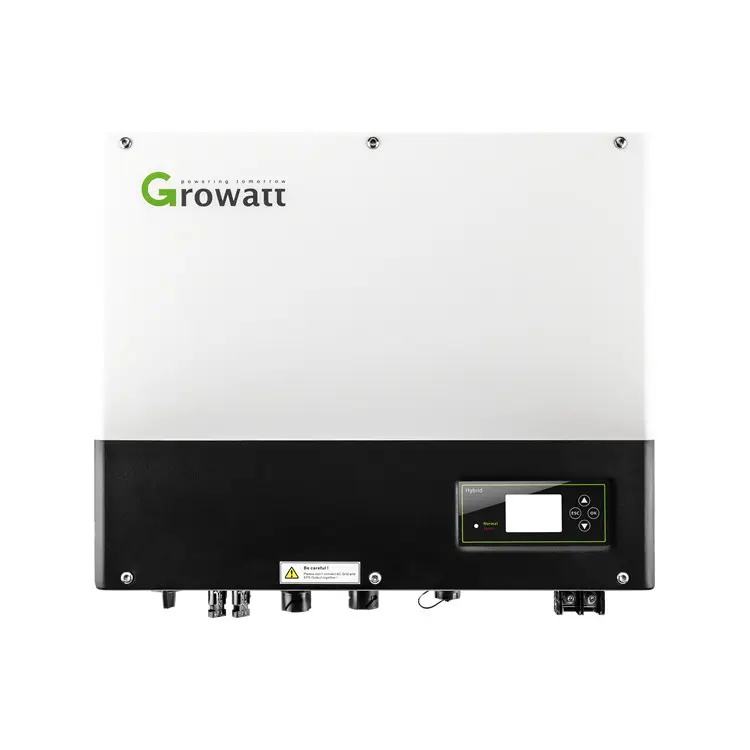

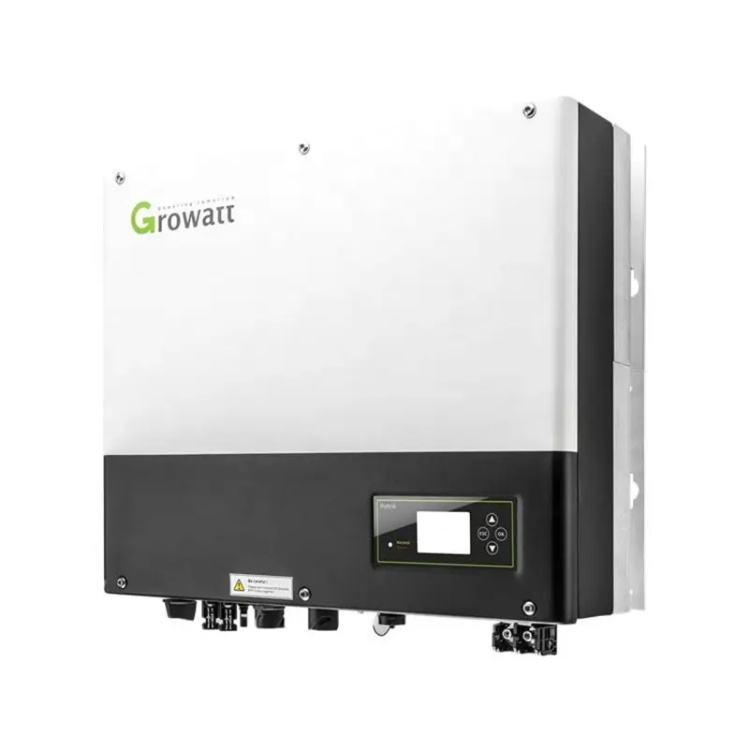

Datasheet

SPH4000TL3 BH

SPH5000TL3 BH

SPH6000TL3 BH

SPH7000TL3 BH

SPH8000TL3 BH

SPH10000TL3 BH

Input data(PV)

Max. recommended PV power (for module STC)

5200W

6500W

7800W

9100W

10400W

13000W

Max. DC voltage

1000V

Start voltage

160V

MPP voltage range

160V-1000V / 600V

No. of MPP trackers/strings per Mpp tracker

2/1

Max. input current per MPP tracker

12A/12A

Max. short-circuit current per MPP trackers

15A/15A

Output data(AC)

AC nominal power

4000W

5000W

6000W

7000W

8000W

10000W

Max. AC apparent power

4000VA

5000VA

6000VA

7000VA

8000VA

10000VA

Nominal AC voltage (range*)

230V/400V; 310~476V

AC grid frequency (range*)

50/60Hz; 45~55Hz/55~65 Hz

Max. output current

6.1A

7.6A

9.1A

10.6A

12.1A

15.2A

Adjustable power factor

0.8leading.. .0.8lagging

TH Di

<3%

AC grid connection type

3W+N+PE

Stand alone(AC power)

Max. AC output power

4000W

5000W

6000W

7000W

8000W

10000W

Max. AC apparent power

4000VA

5000VA

6000VA

7000VA

8000VA

10000VA

Max. output current

6.1A

7.6A

9.1A

10.6A

12.1A

15.2A

Nominal AC output voltage

230V/400V

Nominal AC output frequency

50/60Hz

THDv

<3%

Switch time

<0.5s

Battery data (DC)

Battery voltage range

100~550V

Max charging and discharging current

25A

Continuous charging and discharging power

4000W

5000W

6000W

7000W

8000W

10000W

Type of battery

Lithium /Lead-acid

Capacity of battery

5~50kWh

Efficiency

MAX. efficiency

97.6%

97.8%

98.0%

98.2%

98.2%

98.2%

European efficiency

97.0%

97.2%

97.3%

97.4%

97.4%%

97.5%

Battery charge/discharge efficiency

97.4%

Protection devices

DC switch

yes

DC reverse polarity protection

yes

DC surge protection

Type II

Battery reverse protection

yes

AC short-circuit protection

yes

AC Surge protection

Type II

Ground fault monitoring

yes

Grid monitoring

yes

Anti-islanding protection

yes

Residual-current monitoring unit

yes

Insulation resistance monitoring

yes

General data

Dimensions (W / H / D)

505/453/198mm

Weight

28kg

Operating temperature range

-25°C... +60°C

Noise emission (typical)

≤ 35 dB(A)

Self-consumption night

< 13 W

Topology

transformerless

Cooling

Natural

Protection degree

IP65

Altitude

3000m

Features

DC connection

Universal PV Connector

AC connection

Cable gland+OT terminal

Display

LCD+LED

RS232/RS485/CAN/USB

yes

RF/WIFI/GPRS/4G

opt

Warranty: 5 years/10years

yes / opt
