SUN-5K-SG04LP3-EU;
SUN-6K-SG04LP3-EU;
SUN-8K-SG04LP3-EU;
SUN-10K-SG04LP3-EU;
SUN-12K-SG04LP3-EU;
Three Phase.

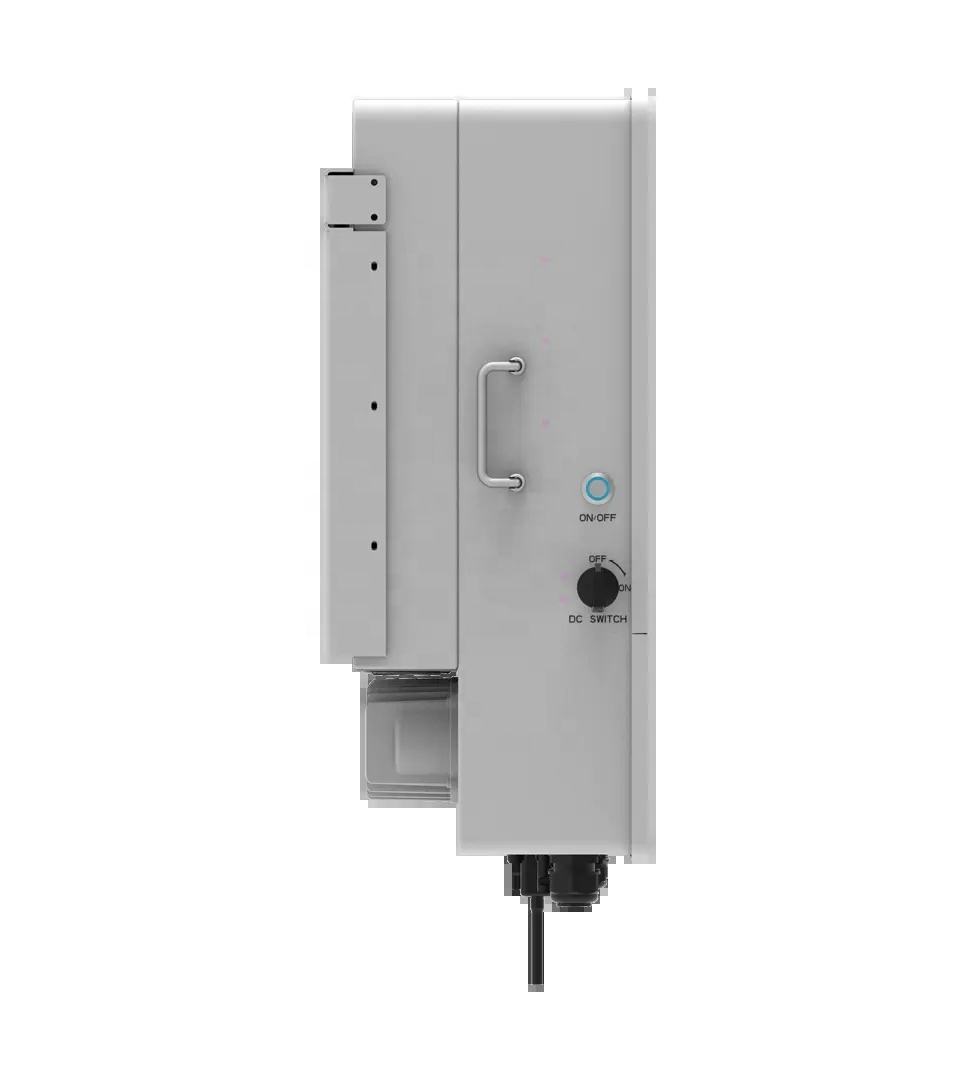

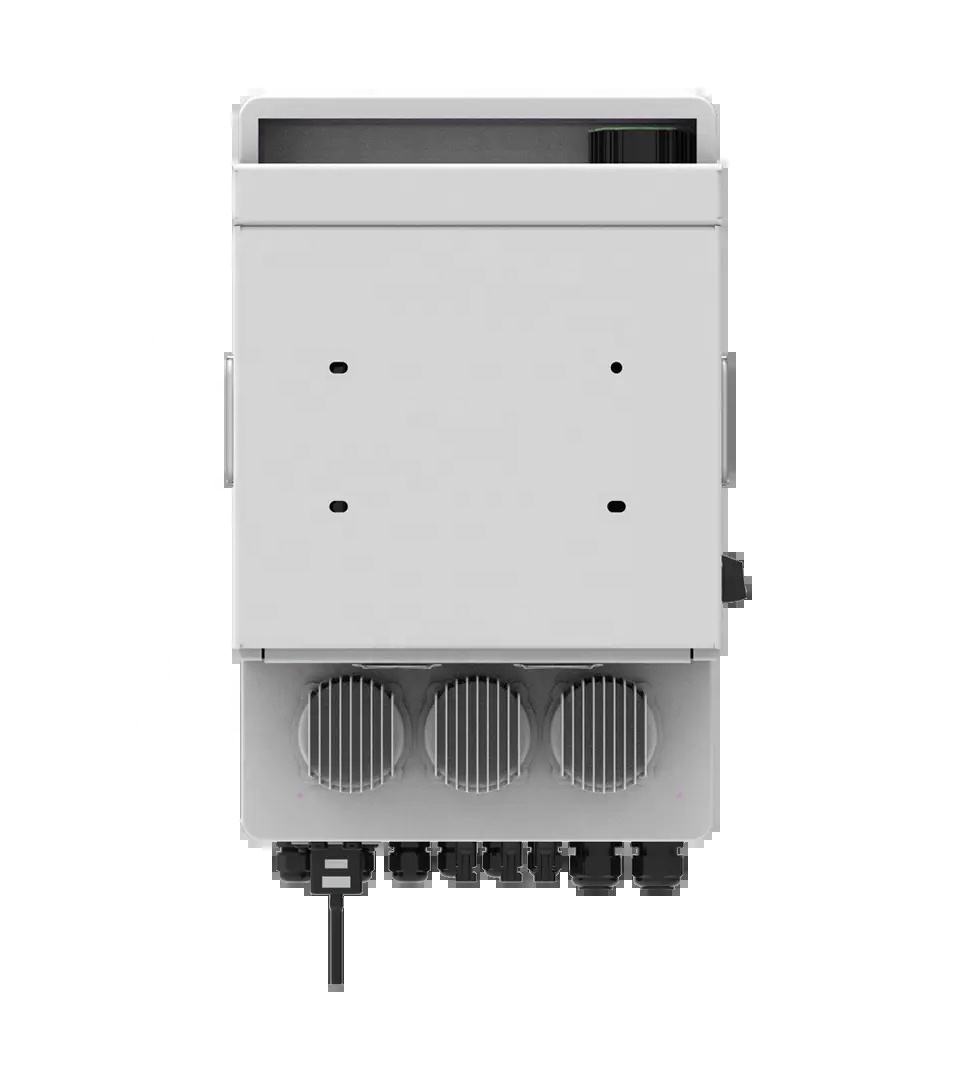

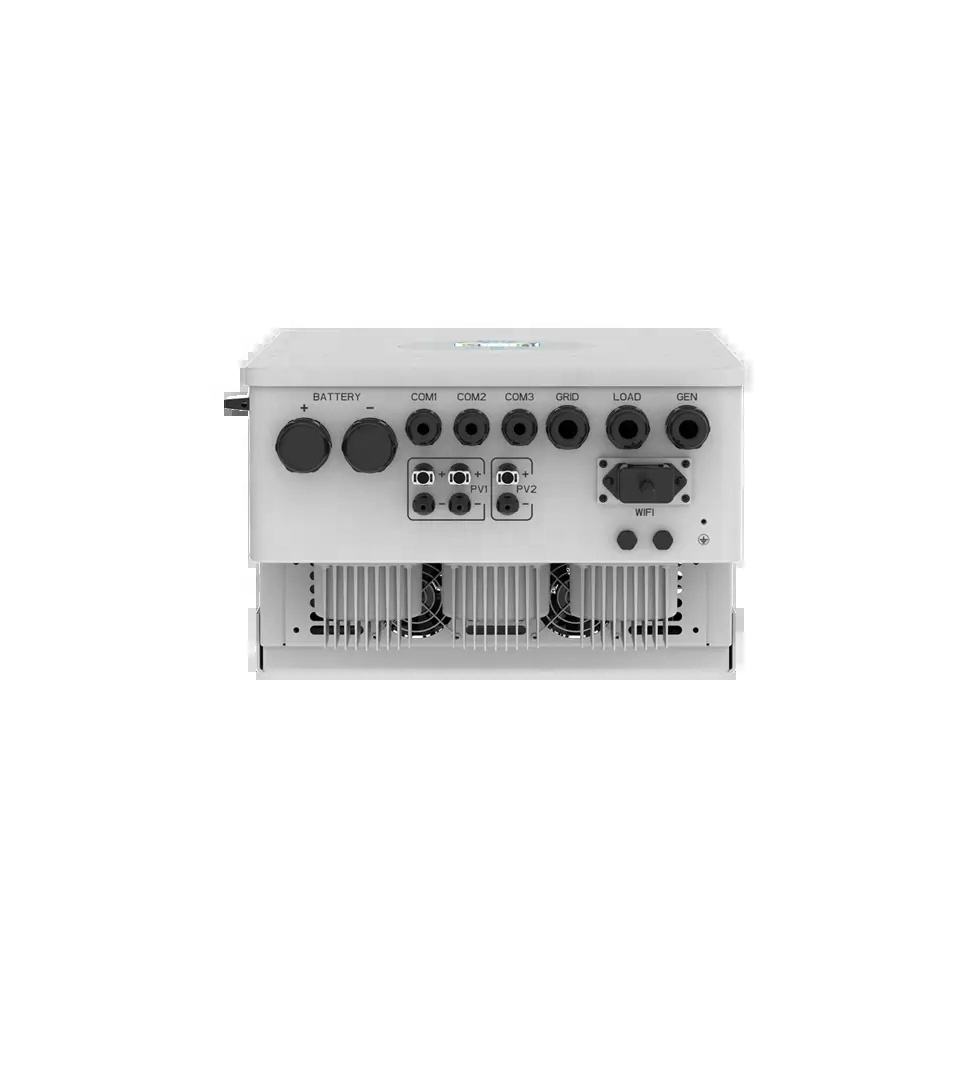

Deye Good Quality Warranty 5 Years Solar Hybrid Inverter 3phase 5kw 6kw 8kw 10kw 12kw
|
Model |
SUN-5K-SG04LP3-EU |
SUN-6K-SG04LP3-EU |
SUN-8K-SG04LP3-EU |
SUN-10K-SG04LP3-EU |
SUN-12K-SG04LP3-EU |
|
Battery Input Data |
|||||
|
Battery Type |
Lead-acid or Lithium-ion |
||||
|
Battery Voltage Range (V) |
40~60 |
||||
|
Max. Charging Current (A) |
120 |
150 |
190 |
210 |
240 |
|
Max. Discharging Current (A) |
120 |
150 |
190 |
210 |
240 |
|
Charging Curve |
3 Stages / Equalization |
||||
|
External Temperature Sensor |
Yes |
||||
|
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||||
|
AC Output Data |
|||||
|
Rated AC Output Active Power (W) |
5000 |
6000 |
8000 |
10000 |
12000 |
|
Max AC Output Active Power (W) |
5500 |
6600 |
8800 |
11000 |
13200 |
|
AC Output Rated Current (A) |
7.6/7.2 |
9.1/8.7 |
12.1/11.6 |
15.2/14.5 |
18.2/17.4 |
|
Max AC Output Current (A) |
8.4/8 |
10/9.6 |
13.4/12.8 |
16.7/15.9 |
20/19.1 |
|
Max. Three-phase Unbalanced Output Current (A) |
11.4/10.9 |
13.6/13 |
18.2/17.4 |
22.7/21.7 |
27.3/26.1 |
|
Max Output short circuit current (A) |
75 |
||||
|
Max. Continuous AC Passthrough (A) |
45 |
||||
|
|
2 time of rated power, 10 S |
||||
|
|
0.8 leading to 0.8 lagging |
||||
|
Output Frequency and Voltage |
50/60Hz;3L/N/PE 220/380Vac，230/400Vac |
||||
|
Grid Type |
Three Phase |
||||
|
|
<3% (of nominal power) |
||||
|
|
<0.5% In |
||||
|
Efficiency |
|
|
Max. Efficiency |
97.60% |
|
Euro Efficiency |
97.00% |
|
MPPT Efficiency |
99.90% |
|
Integrated |
Anti-islanding Protection, PV String Input Reverse Polarity Protection, |
|
Surge protection |
DC Type III / AC Type III |
|
Over Voltage Category |
DC Type II/AC Type III |
|
Certifications and Standards |
|
|
Grid Regulation |
IEC 61727, IEC 62116, EN 50549, AS 4777.2, VDE-AR-N4105, UNE 217002, VDE 0126, CEI 0-21,OVE-Richtlinie R25, NRS 097, C10/11 |
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
General Data |
|
|
Operating Temperature Range (℃) |
-40~60℃, >45℃ Derating |
|
Cooling |
Smart Cooling |
|
Noise (dB) |
≤45 dB |
|
Communication with BMS |
RS485; CAN |
|
Weight (kg) |
33.6 |
|
Cabinet Size (WxHxD mm) |
422×702×281 (Excluding Connectors and Brackets) |
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 Years (10 Years Optional) |
Energy Storage System Details
HYBRID SOLAR INVERTER
-Colorful touch LCD, IP65 protection degree; DC couple and AC couple to retrofit existingsolar system.
-Max 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
-Max charging/discharging current of 135A; 6 time periods for battery charging/discharging.
-Support storing energy from diesel generator.
Home ESS Battery System
CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.
-Flexible Module Design, Free Stacking According
To Your Needs.
-Easy Installation And Transportation.
-6000 Times Cycle life, 10 Years Warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems
equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
