SUN-12K-SG01LP1-EU;
SUN-14K-SG01LP1-EU;
SUN-16K-SG01LP1-EU;
Single Phase.

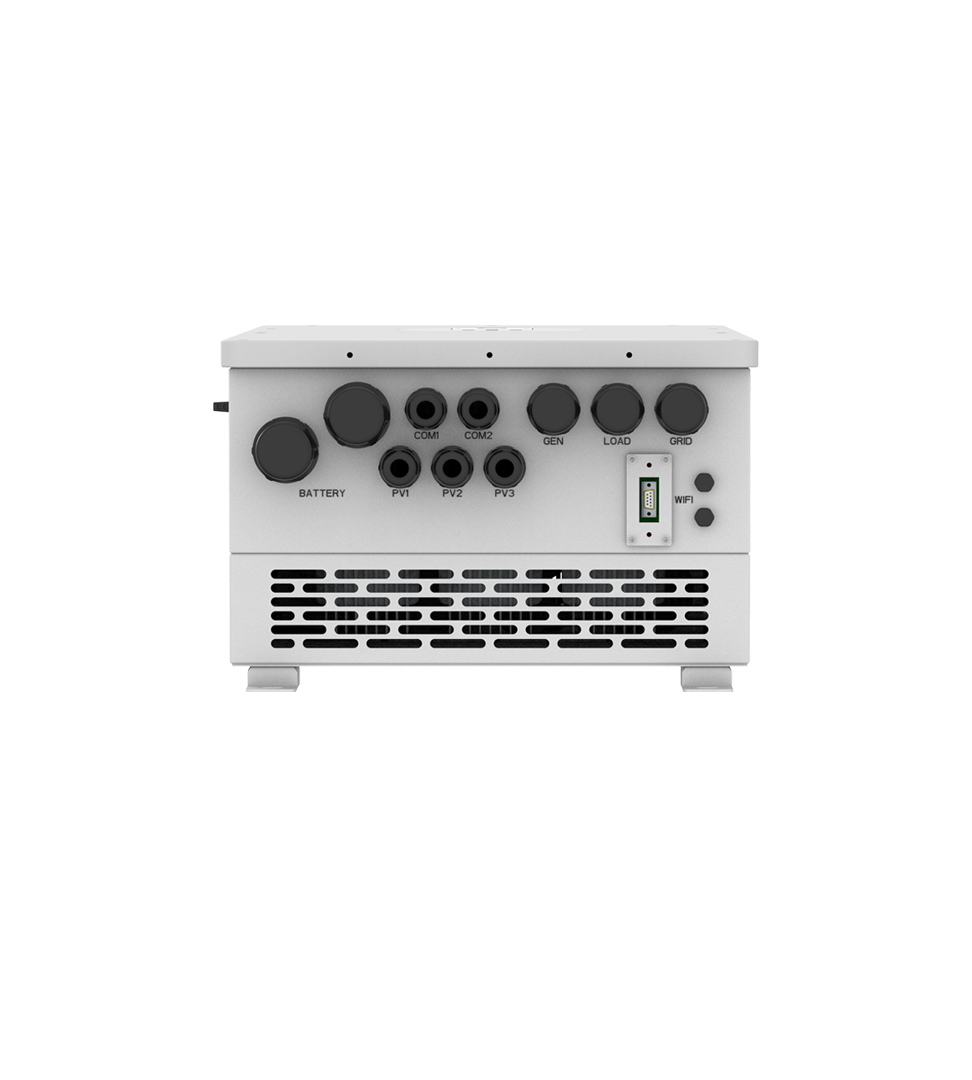

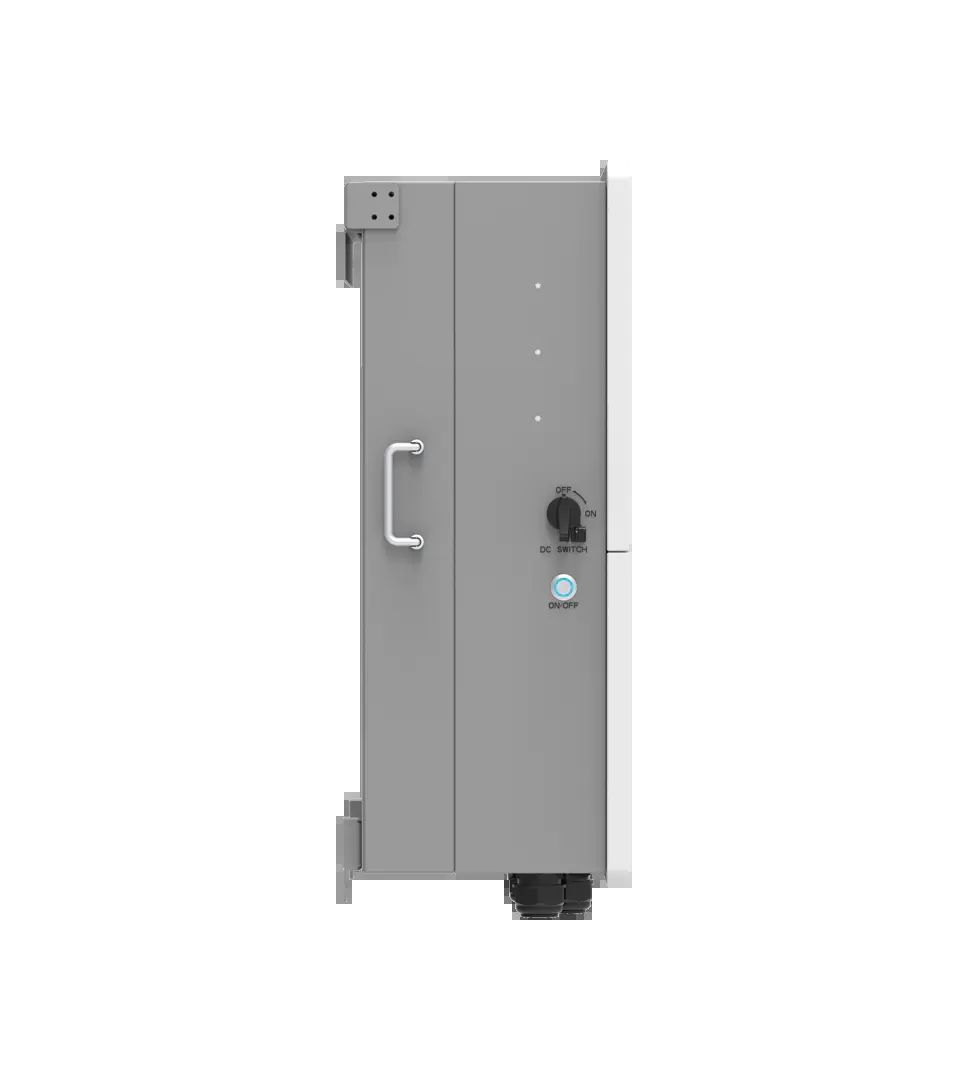

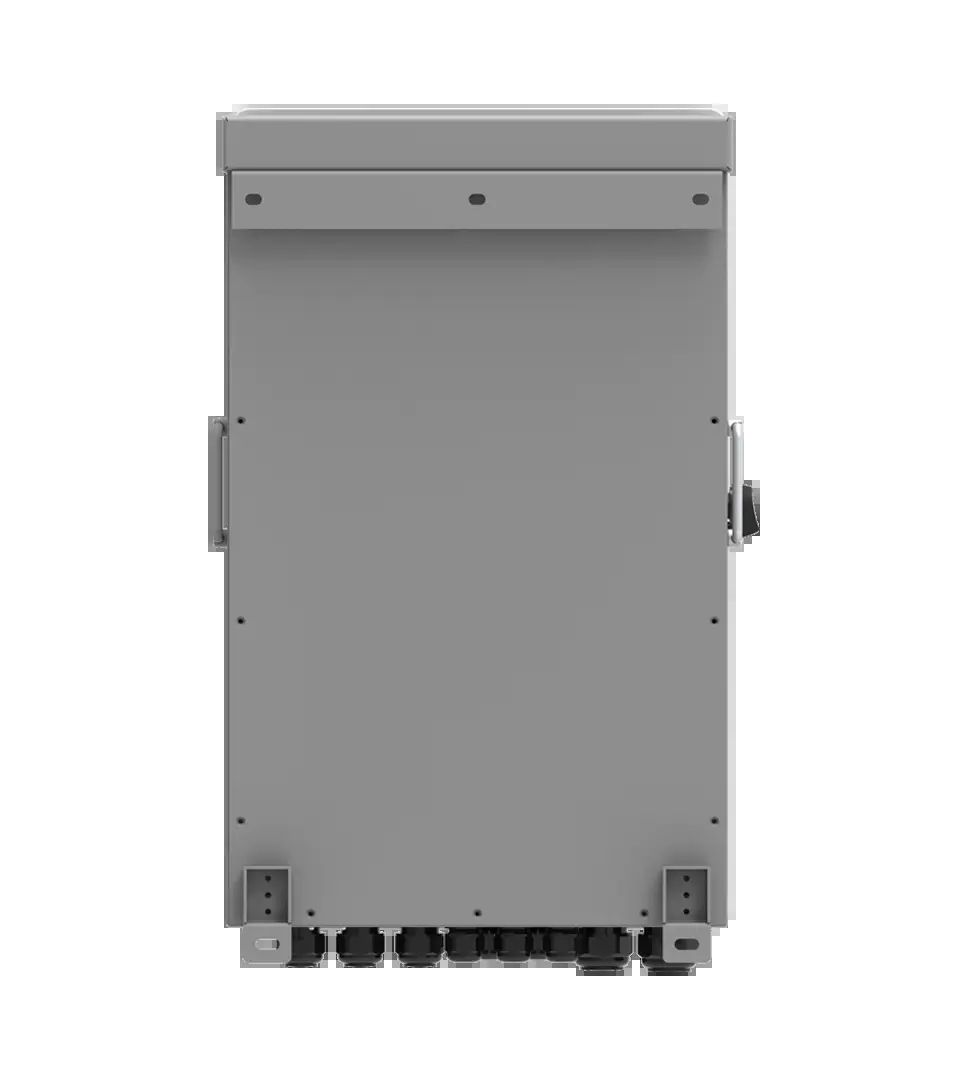

Deye Solar Hybrid Inverter Single Phase 12kw 14kw 16kw
|
Model |
SUN-12K-SG01LP1-EU |
SUN-14K-SG01LP1-EU |
SUN-16K-SG01LP1-EU |
|
Battery Input Data |
|||
|
Battery Type |
Lead-acid or Lithium-ion |
||
|
Battery Voltage Range (V) |
40~60 |
||
|
Max. Charging Current (A) |
220 |
250 |
290 |
|
Max. Discharging Current (A) |
220 |
250 |
290 |
|
Charging Curve |
3 Stages / Equalization |
||
|
External Temperature Sensor |
Yes |
||
|
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||
|
PV String Input Data |
|||
|
Max. DC Input Power (W) |
15600 |
18200 |
20800 |
|
Max. DC Input Voltage (V) |
500 |
||
|
Start-up Voltage (V) |
125 |
||
|
MPPT Range (V) |
150~425 |
||
|
Rated DC Input Voltage (V) |
370 |
||
|
PV Input Current (A) |
26+26+26 |
||
|
Max. PV ISC (A) |
44+44+44 |
||
|
No.of MPPT Trackers |
3 |
||
|
No.of Strings Per MPPT Tracker |
2+2+2 |
||
|
AC Output Data |
|||
|
Rated AC Output Active Power (W) |
12000 |
14000 |
16000 |
|
Max AC Output Active Power (W) |
13200 |
15400 |
17600 |
|
Rated AC Output Current (A) |
54.5/52.2 |
63.6/60.9 |
72.7/69.6 |
|
Max AC Output Current (A) |
60/57.4 |
70/67 |
80/76.5 |
|
Max. Continuous AC Passthrough (A) |
100 |
||
|
Peak Power (off grid) |
2 times of rated power, 5 S |
||
|
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
||
|
Power Factor |
1 |
||
|
Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac |
||
|
Grid Type |
Single Phase |
||
|
Total Harmonic Distortion (THD) |
|
||
|
DC Current Injection |
<0.5% 1n |
||
|
Efficiency |
|
|
Max. Efficiency |
97.60% |
|
Euro Efficiency |
96.50% |
|
MPPT Efficiency |
99.90% |
|
Integrated |
Anti-islanding Protection, PV String Input Reverse Polarity Protection, |
|
Over Voltage Category |
|
|
General Data |
|
|
Operating Temperature Range (℃) |
-45~60℃, >45℃ Derating |
|
Cooling |
Smart Cooling |
|
Noise (dB) |
≤30 dB |
|
Communication with BMS |
RS485; CAN |
|
Weight (kg) |
48.5 |
|
Cabinet Size (WxHxD mm) |
464×763×282 (Excluding Connectors and Brackets) |
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 Years (10 Years Optional) |
Energy Storage System Details
HYBRID SOLAR INVERTER
-Colorful touch LCD, IP65 protection degree; DC couple and AC couple to retrofit existingsolar system.
-Max 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
-Max charging/discharging current of 135A; 6 time periods for battery charging/discharging.
-Support storing energy from diesel generator.
Home ESS Battery System
CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.
-Flexible Module Design, Free Stacking According
To Your Needs.
-Easy Installation And Transportation.
-6000 Times Cycle life, 10 Years Warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems
equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
