SUN-3.6K-SG03LP1-EU;
SUN-5K-SG03LP1-EU;
SUN-6K-SG03LP1-EU;
Single Phase.

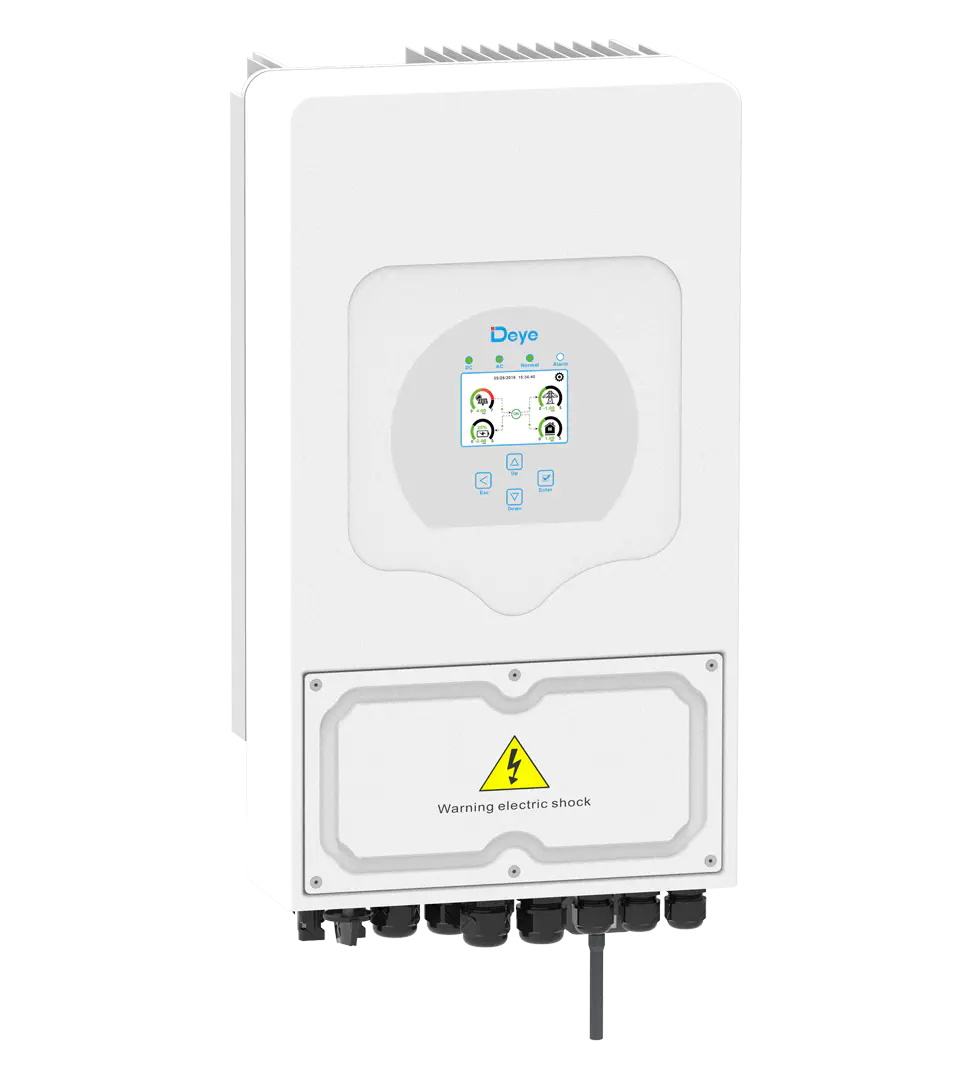

Deye Solar Inverter Home Use Single Phase IP65 3.6kw 5kw 6kw 8kw Hybrid Inverter
|
Model |
SUN-3.6K-SG03LP1-EU |
SUN-5K-SG03LP1-EU |
SUN-6K-SG03LP1-EU |
|
Battery Input Data |
|||
|
Battery Type |
Lead-acid or Lithium-ion |
||
|
Battery Voltage Range (V) |
40~60V |
||
|
Charging/Discharging Current |
90A/90A |
120A/120A |
135A/135A |
|
PV String Input Data |
|||
|
Max. DC Input Power (W) |
4680W |
6500W |
7800W |
|
PV Input Voltage (V) |
370V (125V~500V) |
||
|
Start-up Voltage (V) |
125V |
||
|
PV Input Current (A) |
13A+13A |
||
|
No.of MPPT Trackers |
2 |
||
|
No.of Strings Per MPPT Tracke |
1+1 |
||
|
AC Output Data |
|||
|
Rated AC Output Active Power |
3600W |
5000W |
6000W |
|
Max. AC Output Active Power |
3960W |
5500W |
6600W |
|
AC Output Rated Current (A) |
16A |
22A |
27A |
|
Max. AC Current (A) |
18A |
25A |
30A |
|
Output Frequency and Voltage |
50Hz/45Hz-55Hz 60Hz/55Hz-65H 220/230Vac (single phase) |
||
|
Certifications and Standards |
|||
|
Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
||
|
Safety / EMC Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
||
|
General Data |
|||
|
Operating Temperature Range |
-25~60℃, >45℃ Derating |
||
|
Noise (dB) |
<30dB |
||
|
Communication with BMS |
RS485; CAN |
||
|
Weight (kg) |
21KG |
||
|
Size (mm) |
330W*580H*232D mm |
||
|
Protection Degree |
IP65 |
||
Energy Storage System Details
HYBRID SOLAR INVERTER
-Colorful touch LCD, IP65 protection degree; DC couple and AC couple to retrofit existingsolar system.
-Max 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
-Max charging/discharging current of 135A; 6 time periods for battery charging/discharging.
-Support storing energy from diesel generator.
Home ESS Battery System
CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.
-Flexible Module Design, Free Stacking According
To Your Needs.
-Easy Installation And Transportation.
-6000 Times Cycle life, 10 Years Warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems
equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
