24/7 Technical Support, Training, Localized Service;
High Yield, Easy OEM/Installation/Maintenance, Grid Support;
Extreme Safe Reliable Design And Material;
Adapt To Extreme Low Temperature And Sand-Dust Environment;
Superior Uniformity And EV Grade Safety LFP Battery;
Advanced Battery Management System;
Fault Classification Processing Mechanism;
Automatic Smart Fire Alarm And Extinguishing System.

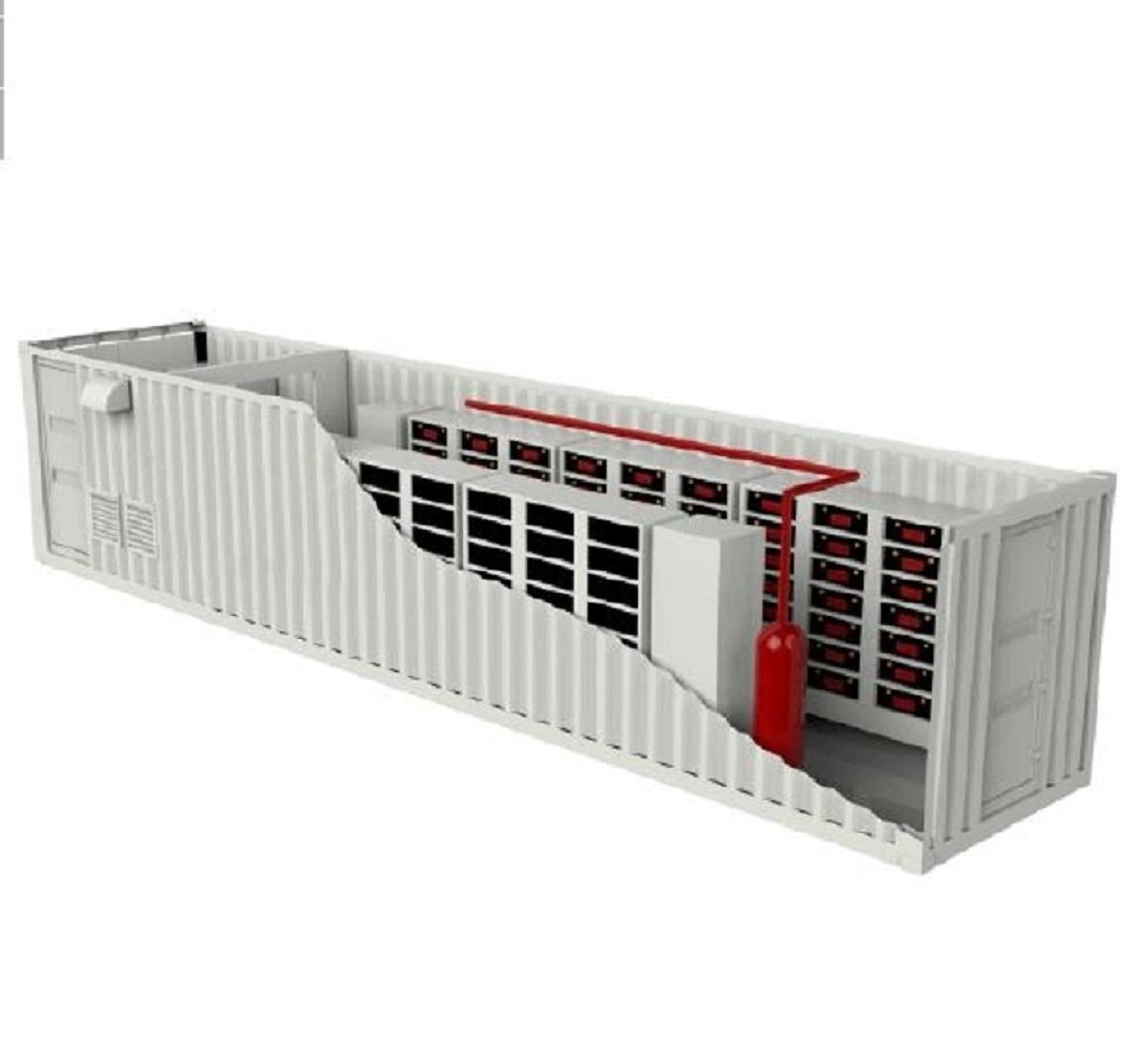

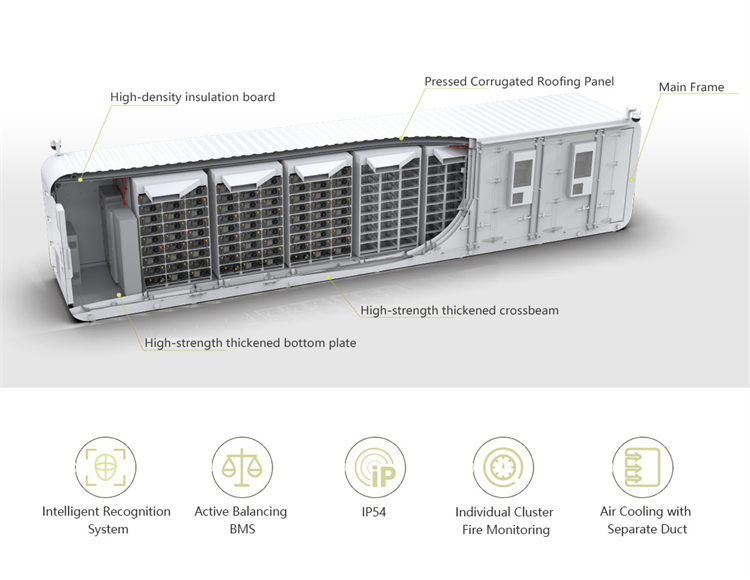

High Safety BESS Energy Storage Container/Power Station Customized Capacity For Industrial And Commercial
|
5MWh Air-cooled ESS |
|
|
Cell Capacity |
280Ah |
|
Battery Type |
Lithium Iron Phosphate (LFP) |
|
Rated Voltage |
DC1331.2V |
|
Voltage Range |
DC1160-1500V |
|
Rated Capacity |
5.218MWh |
|
IP Rating |
IP54 |
|
Cell Balancing |
Active balancing |
|
Rated Charge/Discharge Rate |
≤0.5P |
|
Configuration Method |
14*26*1P16S |
|
Working Temperature |
-40ºC~55ºC |
|
Fire Extinguishing Spray |
Heptafluoropropane / Perfluoroacetone |
|
Security |
Facial Recognition, QR code, IC card, Password |
|
Main Material |
Galvanized steel sheet |
|
Surface Coating |
Electrostatic spraying, Fluorocarbon paint |
|
Temperature Control |
Split-unit temperature control |
|
Fire Detection |
Temperature, Smoke, Open flame, Flammable gas |
|
3MWh Liquid-cooled ESS |
|
|
Cell Capacity |
280Ah |
|
Battery Type |
Lithium Iron Phosphate (LFP) |
|
Rated Voltage |
DC1331.2V |
|
Voltage Range |
DC1160-1500V |
|
Rated Capacity |
2.98MWh |
|
IP Rating |
IP54 |
|
Cell Balancing |
Active balancing |
|
Rated Charge/Discharge Rate |
≤0.5P |
|
Configuration Method |
16*8*1P52S |
|
Working Temperature |
-40ºC~55ºC |
|
Fire Extinguishing Spray |
Heptafluoropropane / Perfluoroacetone |
|
Security |
Facial Recognition, QR code, IC card, Password |
|
Main Material |
Galvanized steel sheet |
|
Surface Coating |
Electrostatic spraying, Fluorocarbon paint |
|
Temperature Control |
Split-unit temperature control |
|
Fire Detection |
Temperature, Smoke, Open flame, Flammable gas |
|
2.4MWh Air-cooled ESS |
|
|
Power |
630kW |
|
Capacity |
2.4MWh |
|
Nominal voltage |
716.8V |
|
Level of protection |
IP54 |
|
Operating temperature |
-20-55°C |
|
Altitude |
3000m |
|
Dimension(W*D*H)mm |
6058x2438x2896 |
|
Cooling system |
Industrial air conditioning/forced air cooling |
|
Fire protection system |
Gas fire protection |
|
Fire test |
2h |
|
Wind load |
0.6kN/m³ |
|
Seismic level |
level 10 |
|
Lacquer |
Zinc-rich primer surface+Fluorocarbon topcoat≥100um |
