Furniture Design Plug And Play;
Hybrid Inverter 6.6KW, Battery 51.2V 200AH 10.24KWH Each Module;
Over 6000 Cycles, design life 10+ years;
Intelligent management system.
Hybrid Inverter 6.6KW, Battery 51.2V 200AH 10.24KWH Each Module;
Over 6000 Cycles, design life 10+ years;
Intelligent management system.

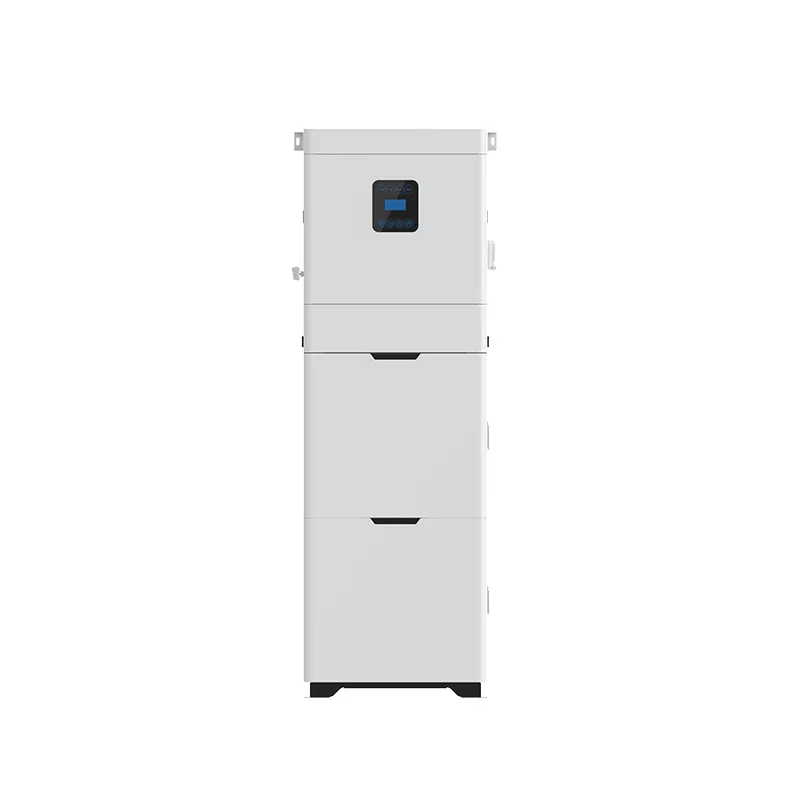

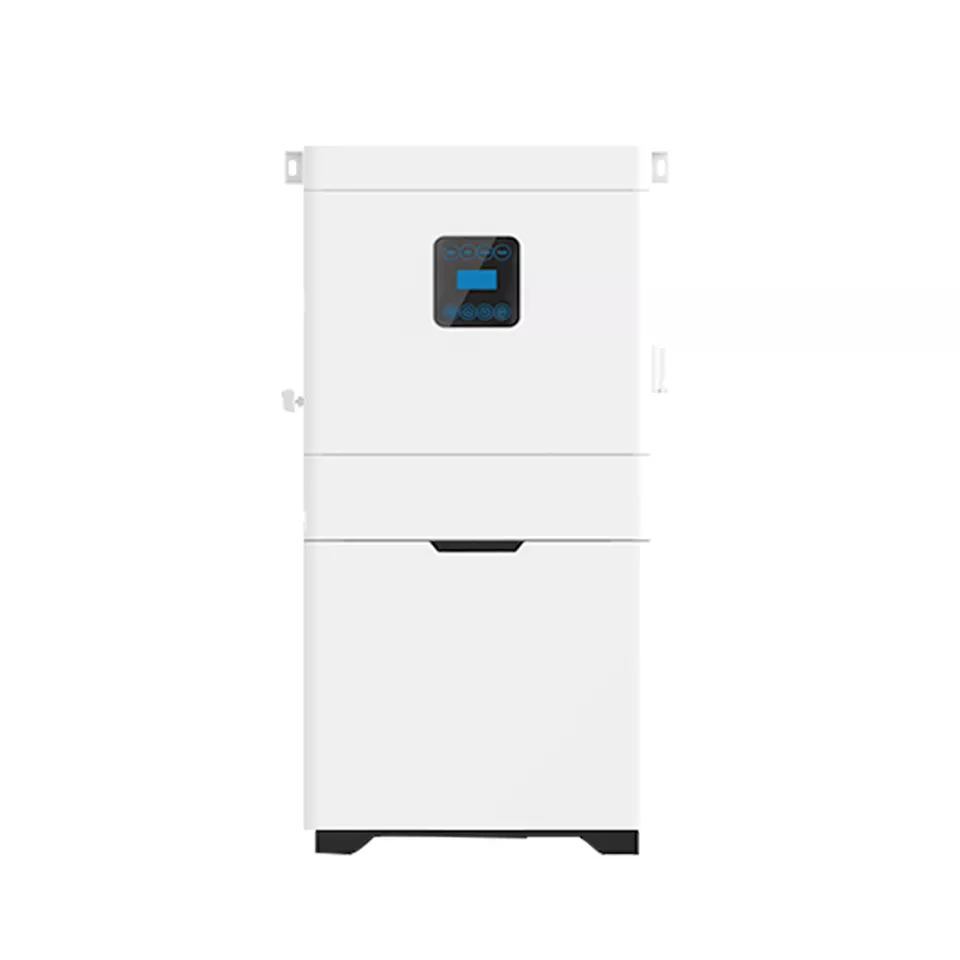

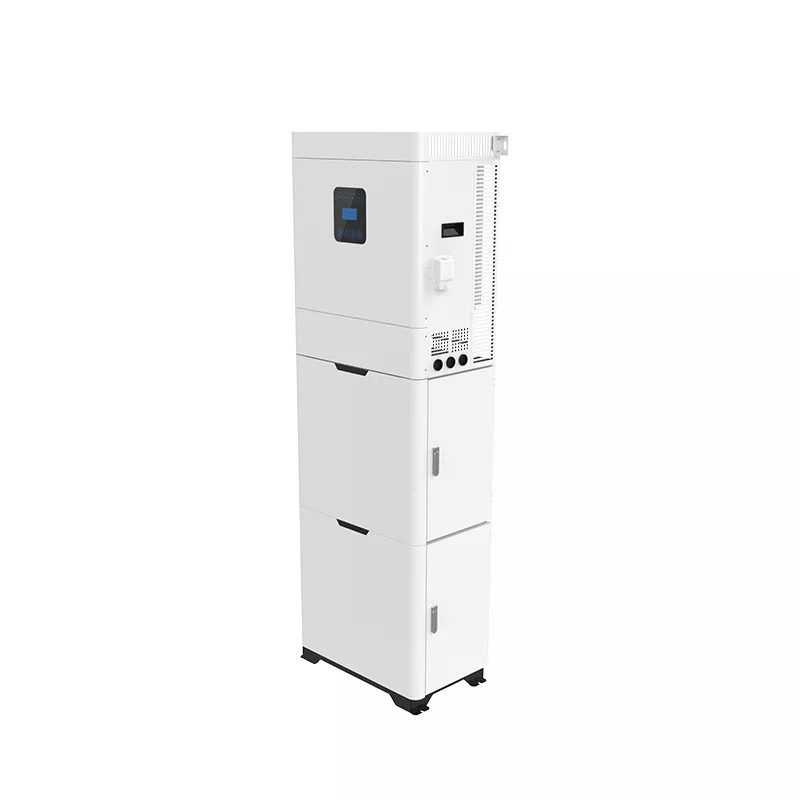

10KW Home lithium ion batteries ALL in one Hybrid On Off Grid Complete Solar Energy Storage System
|
Inverter Paramters |
|
|
Max. Input Power |
6600W |
|
Max. PV Input Current |
14A |
|
MPPT Tracker/Strings |
2/1 |
|
Max. PV Voltage |
500V |
|
MPPT Range |
125V-500V |
|
AC Output Topology |
L+N+PE |
|
Battery Technical Parameters |
|
|
Battery Type |
Lithium iron phoshpate |
|
Battery Capacity |
10KWH |
|
Life |
10 Years(25℃/77F) |
|
Max. Charging Voltage |
58V |
|
Charge/Discharge Current |
Max 100A (Recommend 50A) |
|
System Parameters |
|
|
AC Output |
5000W |
|
Protection class |
IP65 |
|
Display |
LCD |
|
Interface |
RS485/Wifi/LAN/CAN/DR |
|
Dimensions (W/D/H) |
580/350/1800mm |
|
Weight |
170KG |
