UL1973/ IEC62619/ CE-EMC/ UN38.3/ MSDS Certified;
Compatible With Most Inverters;
Plug and Play;
High Voltage 5KWH to 25KWH;
Low MOQ/Fast Delievery to OEM/ODM.

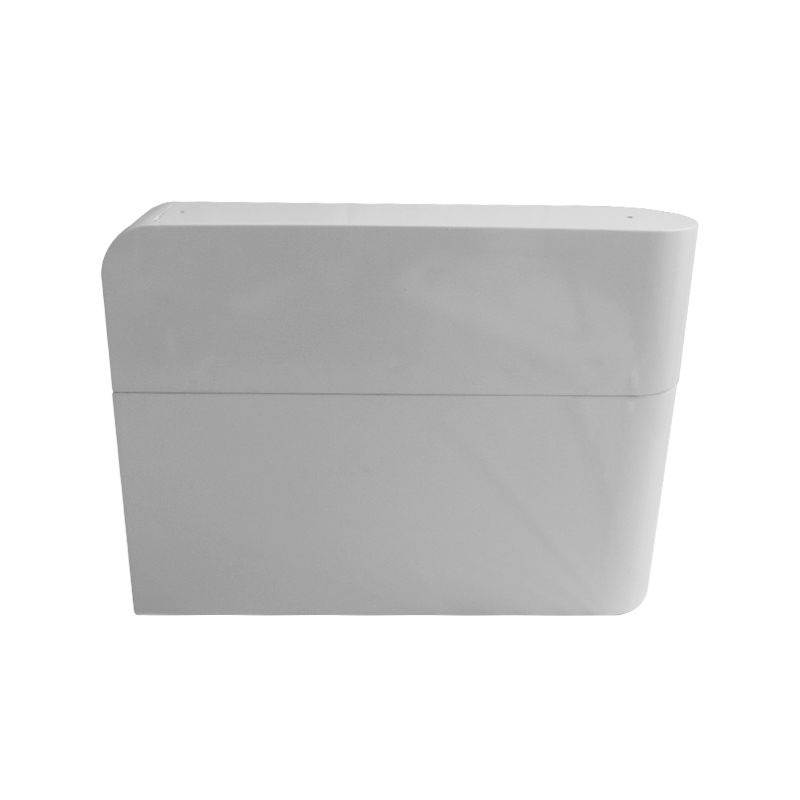

Manufacturer Price High Voltage Stackable Home ESS 5KWH to 25KWH
|
PERFORMANCE SPECIFICATIONS |
||||
|
Model |
HB-10000W |
HB-15000W |
HB-20000W |
HB-25000W |
|
Nominal Voltage |
204.8V(64series) |
307.2V(96series) |
409.6V(128series) |
512V(160series) |
|
Cell model / Configuration |
3.2V 50Ah(ANC)/32S1P |
|||
|
Capacity(Ah) |
50AH |
|||
|
Rated Energy(KWH) |
5.12KWH |
|||
|
Usable Energy (KWH) |
4.6KWH |
|||
|
Max. Charge / Discharge Current(A) |
25A /50A |
|||
|
Voltage Range(Vdc) |
180-228V |
270-340V |
350-450V |
440-560V |
|
Scalability |
Up to 1 parallel |
|||
|
Communieation |
RS232-PC,RS485-Inverter,Canbus-Inverter |
|||
|
Cycle Life |
≥6000cycles@25℃，90% DOD，60%EOL |
|||
|
Design Life |
≥15 Years(25℃） |
|||
|
MECHANICAL SPECIFICATIONS |
||||
|
Weight(Approx)(KG) |
Approx:130kg |
Approx:180kg |
Approx:230kg |
Approx:280kg |
|
Dimension (W/D/H)(mm) |
630*185*950 |
630*185*1290 |
630*185*1640 |
630*185*1980 |
|
Installation Mode |
Stack |
|||
|
IP Grade |
Ip65 |
|||
|
SECURITY AND CERTIFICATION |
||||
|
Safety(Pack) |
UN38.3,MSDS,IEC62619(CB),CE-EMC,UL1973 |
|||
|
Safety(Cell) |
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
|||
|
Protection |
BMS, Breaker |
|||
|
ENVIRONMENTAL SPECIFICATIONS |
||||
|
Operating Temperature(℃） |
Charge:-10℃~50℃；Discharge：-20℃-50℃ |
|||
|
Altitude (m) |
≤2000 |
|||
|
Humidity |
≤95%(Non-condensing） |
|||
