SUN-8K-SGO1LP1- EU;
Single Phase.

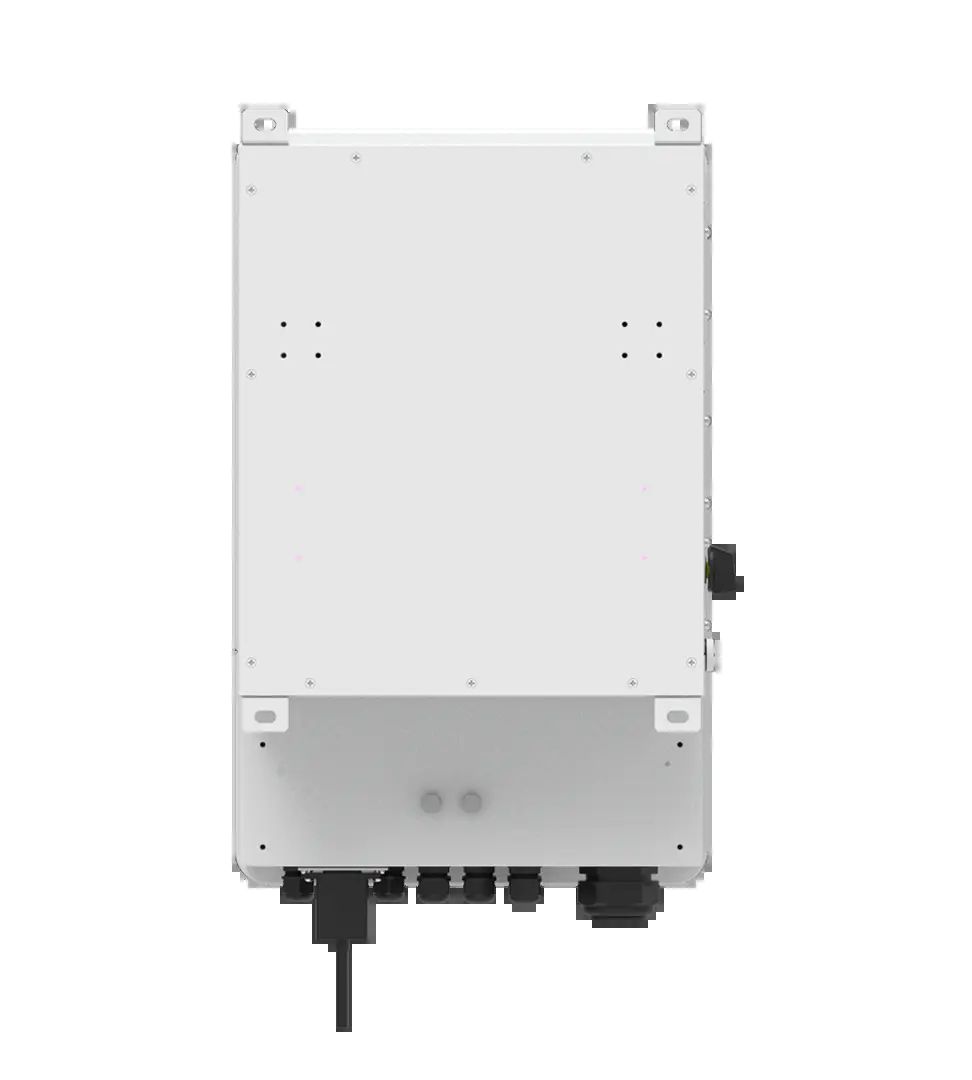

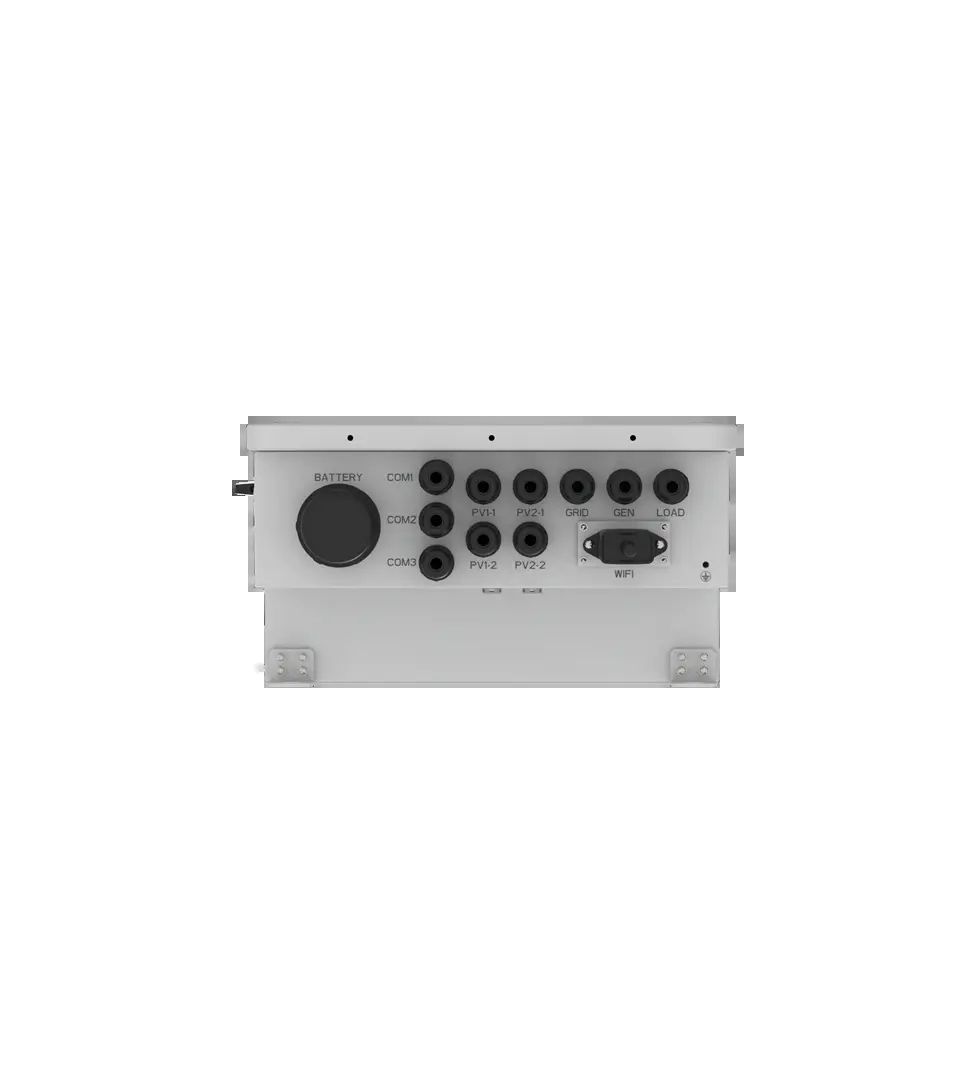

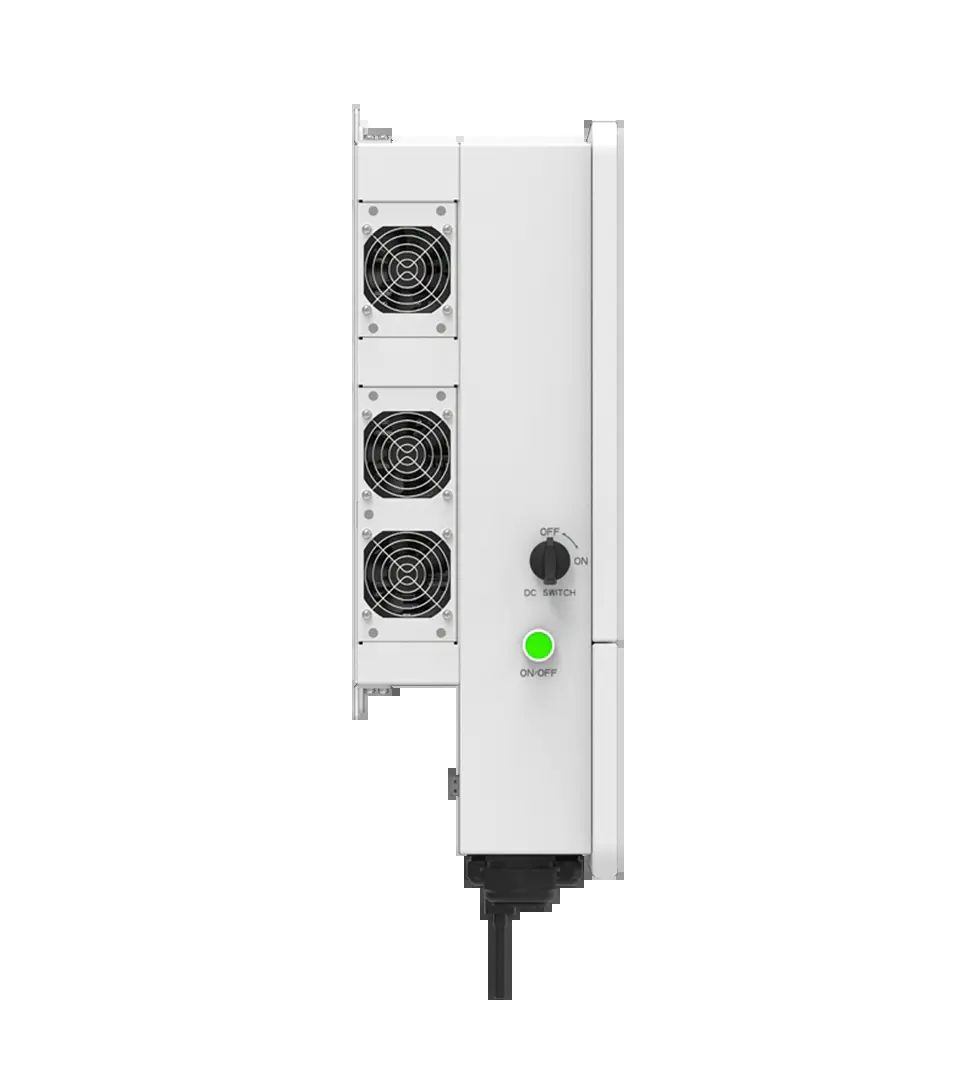

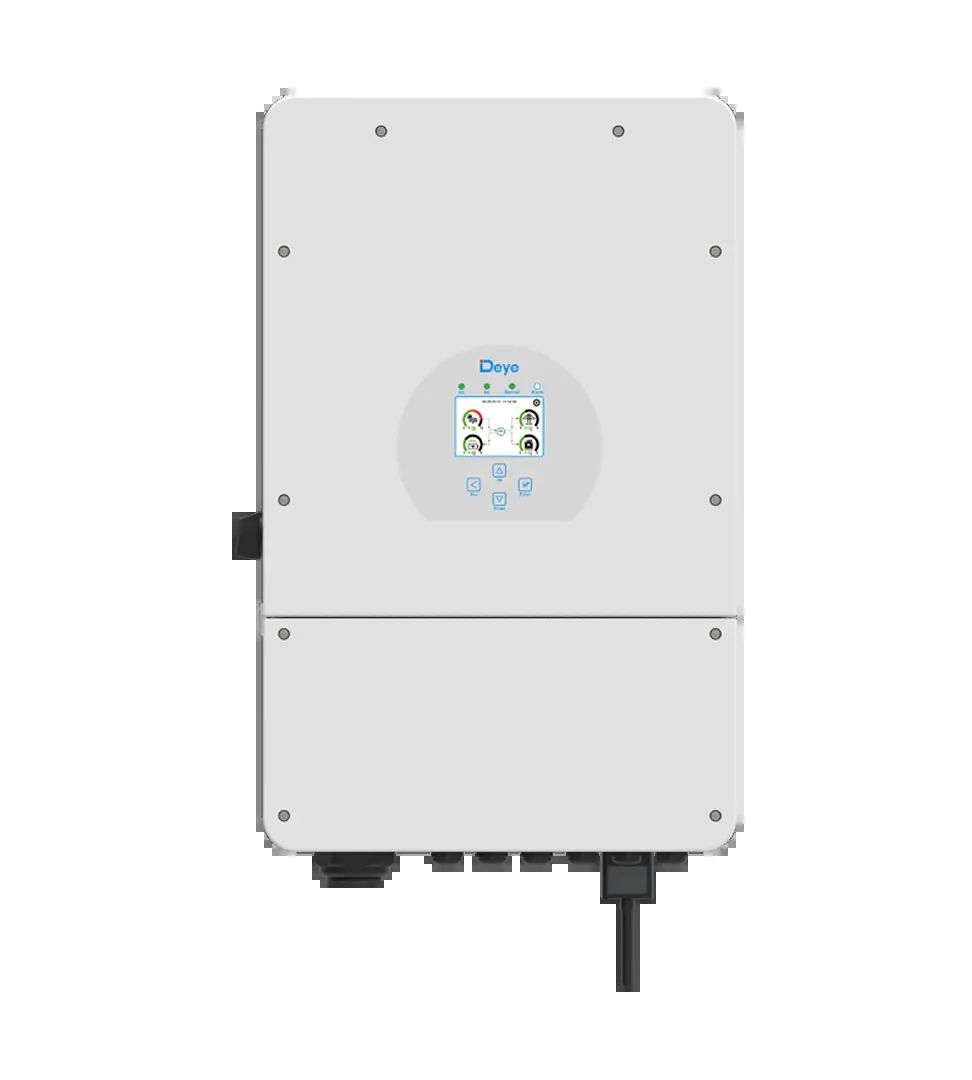

Deye SUN-8K-SG01LP1-EU 5 Years / 10 Years Warranty 8kw Solar Hybrid Inverter
|
Model |
SUN-8K-SGO1LP1- US/EU |
|
Battery Type |
Lead-acid or Lithium-ion |
|
Battery Voltage Range(V) |
40~60 |
|
Max. Charging Current(A) |
190 |
|
Charging Curve |
3 Stages / Equalization |
|
Charging Strategy forLi-lon Battery |
Self-adaption to BMS |
|
Max. DC Input Power (W) |
10400 |
|
Rated PV Input Voltage (V) |
370(125~500) |
|
Start-up Voltage (V) |
125 |
|
MPPT Voltage Range(V) |
150-425 |
|
Full Load DC Voltage Range(V) |
200-425 |
|
PV Input Current(A) |
26+26 |
|
Max.PVISC(A) |
44+44 |
|
Number of MPPT Trackers |
2 |
|
Number of Strings perMPPT Tracker |
2+2 |
|
General Data |
|
|
Operating Temperature Range(C) |
-40~60°C>45C Derating |
|
Cooling |
Smart Cooling |
|
Communication with BMS |
RS485; CAN |
|
Weight (kg) |
32 |
|
Cabinet Size(WxHxD mm) |
420x670x233(Excluding Connectors and Brackets) |
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 Years (10 Years Optional) |
Energy Storage System Details
HYBRID SOLAR INVERTER
-Colorful touch LCD, IP65 protection degree; DC couple and AC couple to retrofit existingsolar system.
-Max 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
-Max charging/discharging current of 135A; 6 time periods for battery charging/discharging.
-Support storing energy from diesel generator.
Home ESS Battery System
CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.
-Flexible Module Design, Free Stacking According
To Your Needs.
-Easy Installation And Transportation.
-6000 Times Cycle life, 10 Years Warranty.
-Over temperature, over current, over voltage, over discharge, over charge protection.
Micro Grid ESS Outdoor Cabinet
-Support on-grid and off-grid systems
equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.
Commercial & Industrial ESS Container
-Fault classification processing mechanism.
-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
